Toyota Corolla Cross (2022-2026) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Ignition System / Parts Location

PARTS LOCATION

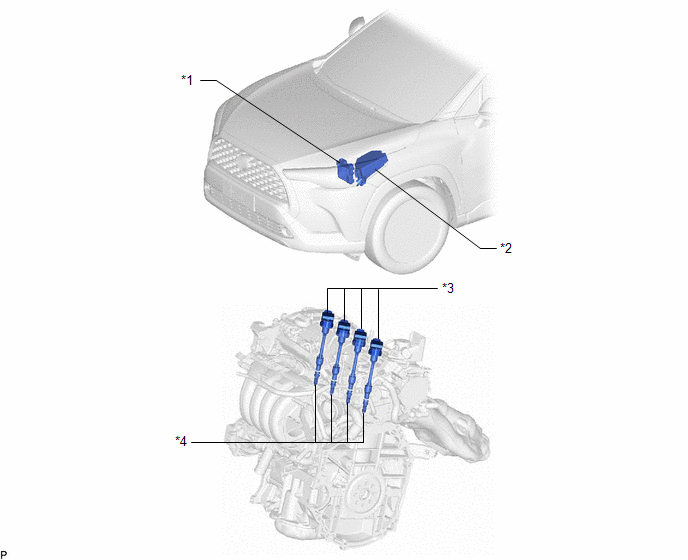

ILLUSTRATION

*1

ECM

*2

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- INJ FUSE

*3

IGNITION COIL ASSEMBLY

*4

SPARK PLUG
