Toyota Corolla Cross: Manifold Absolute Pressure / Barometric Pressure Sensor Circuit Short to Battery or Open (P010515)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fxs (engine Control) / Sfi System / Manifold Absolute Pressure / Barometric Pressure Sensor Circuit Short to Battery or Open (P010515)

DESCRIPTION

Refer to DTC P010511.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P010515

Manifold Absolute Pressure / Barometric Pressure Sensor Circuit Short to Battery or Open

The E.F.I. vacuum sensor assembly output voltage is higher than 4.5 V for 0.5 seconds or more (1 trip detection logic).

  • Open or short in E.F.I. vacuum sensor assembly circuit
  • E.F.I. vacuum sensor assembly
  • ECM

Comes on

  • SAE Code: P0108
  • DTC for Mexico Models: Applies

HINT:

When a DTC is output, check the Data List item "Intake Manifold Absolute Pressure" using the GTS.

Click here

DTC No.

Intake Manifold Absolute Pressure

Malfunction

P010515

Higher than 130 kPa (18.85 psi)

  • Short in VCPM to PIM circuit
  • Open in PIM circuit
  • Open in EPIM circuit

If the Data List displays a normal value, the normal value may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.

MONITOR DESCRIPTION

The ECM monitors the E.F.I. vacuum sensor assembly voltage and uses this value to calculate the intake manifold pressure. When the E.F.I. vacuum sensor assembly output voltage deviates from the normal operating range, the ECM interprets this as a malfunction in the E.F.I. vacuum sensor assembly circuit, illuminates the MIL and stores a DTC.

Example:

If the E.F.I. vacuum sensor assembly output voltage is higher than 4.5 V for 0.5 seconds or more, the ECM stores this DTC.

MONITOR STRATEGY

Related DTCs

P0108: E.F.I. vacuum sensor assembly range check (high voltage)

Required Sensors/Components (Main)

E.F.I. vacuum sensor assembly

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

0.5 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

None

All of the following conditions are met

-

Auxiliary battery voltage

8 V or higher

Ignition switch

ON

Time after ignition switch off to ON

0.5 seconds or more

Time after starter on to off

More than 2 seconds

TYPICAL MALFUNCTION THRESHOLDS

E.F.I. vacuum sensor assembly voltage (Manifold absolute pressure)

Higher than 4.5 V (Higher than 130 kPa(abs) [19 psi(abs)])

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power and wait for at least 30 seconds.
  6. Turn the ignition switch to ON.
  7. Turn the GTS on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine and wait 5 seconds or more [A].
  10. Enter the following menus: Powertrain / Engine / Trouble Codes [B].
  11. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  13. Input the DTC: P010515.
  14. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • [A] to [B]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P010511.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR

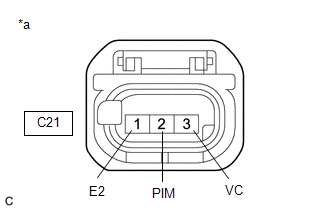

*a

Front view of wire harness connector

(to E.F.I. Vacuum Sensor Assembly)

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

(a) Disconnect the E.F.I. vacuum sensor assembly connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C21-3 (VC) - C21-1 (E2)

Ignition switch ON

4.75 to 5.25 V

C21-2 (PIM) - C21-1 (E2)

Ignition switch ON

1.2 to 5.25 V

(d) Turn the ignition switch off and wait for at least 30 seconds.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C21-1 (E2) - Body ground

Ignition switch off

Below 1 Ω

C21-3 (VC) - C21-2 (PIM)

Ignition switch off

171 to 189 kΩ

OK

REPLACE E.F.I. VACUUM SENSOR ASSEMBLY

NG

2.

CHECK HARNESS AND CONNECTOR (E.F.I. VACUUM SENSOR ASSEMBLY - ECM)

(a) Disconnect the E.F.I. vacuum sensor assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C21-1 (E2) - C139-119 (EPIM)

Always

Below 1 Ω

C21-2 (PIM) - C139-120 (PIM)

Always

Below 1 Ω

C21-2 (PIM) or C139-120 (PIM) - Other terminals

Always

10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
