Toyota Corolla Cross: Maintenance data (fuel, oil level, etc.)

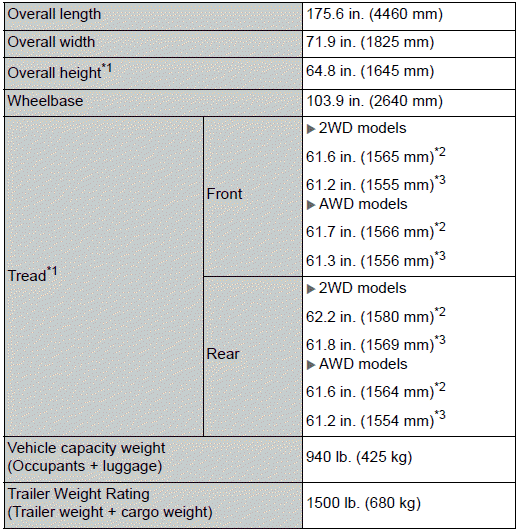

Dimensions and weight

Specifications

*1: Unladen vehicles
*2: Vehicles with 215/65R17 tires
*3: Vehicles with 225/55R18 tires

Seating capacity

Specifications

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.

This number is stamped on the top left of the instrument panel.

Specifications

This number is also on the Certification Label.

Specifications

■ Engine number

The engine number is stamped on the engine block as shown.

Specifications

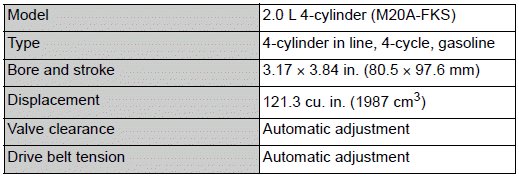

Engine

Specifications

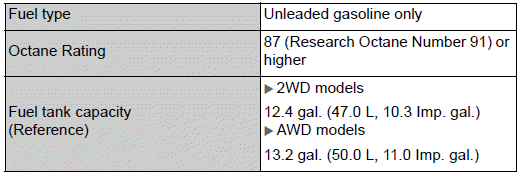

Fuel

Specifications

Lubrication system

■ Oil capacity (Drain and refill [Reference*] )

Specifications

*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the dipstick.

■ Engine oil selection

"Toyota Genuine Motor Oil" is used in your Toyota vehicle. Use Toyota approved "Toyota Genuine Motor Oil" or equivalent to satisfy the following grade and viscosity.

Oil grade: ILSAC GF-6B multigrade engine oil

Recommended viscosity: SAE 0W-16

Specifications

  1. Outside temperature

SAE 0W-16 is the best choice for good fuel economy and good starting in cold weather.

If SAE 0W-16 is not available, SAE 0W-20 oil may be used.

However, it must be replaced with SAE 0W-16 at the next oil change.

Oil viscosity (0W-16 is explained here as an example):

  • The 0W in 0W-16 indicates the characteristic of the oil which allows cold startability.

    Oils with a lower value before the W allow for easier starting of the engine in cold weather.

  • The 16 in 0W-16 indicates the viscosity characteristic of the oil when the oil is at high temperature.

    An oil with a higher viscosity (one with a higher value) may be better suited if the vehicle is operated at high speeds, or under extreme load conditions.

How to read oil container label: API registered mark is added to some oil containers to help you

Specifications

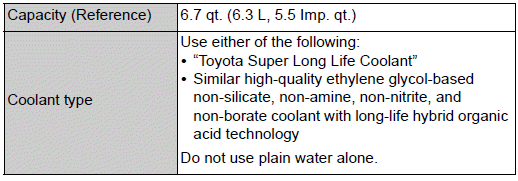

Cooling system

Specifications

Ignition system (spark plug)

Specifications

NOTICE

■Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

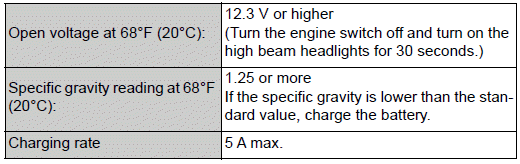

Electrical system (battery)

Specifications

Continuously variable transmission

Specifications

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■Continuously variable transmission fluid type

Using continuously variable transmission fluid other than the above type may cause abnormal noise or vibration, or damage the continuously variable transmission of your vehicle.

Transfer (AWD models)

Specifications

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■Transfer oil type precaution

Using transfer oil other than the specified oil may cause abnormal noise or vibration, or damage the transfer of your vehicle.

Rear differential (AWD models)

Specifications

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■Differential gear oil type precaution

Using differential gear oil other than the specified oil may cause abnormal noise or vibration, or damage the differential gear of your vehicle.

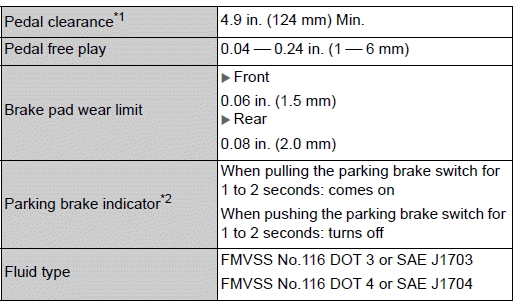

Brakes

Specifications

*1: Minimum pedal clearance when depressed with a force of 67.4 lbf (300 N, 30.6 kgf) while the engine is running.
*2: Make sure to confirm that the brake system warning light (yellow) does not illuminate. (If the brake system warning light illuminates)

Steering

Specifications

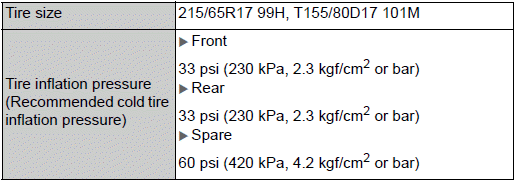

Tires and wheels

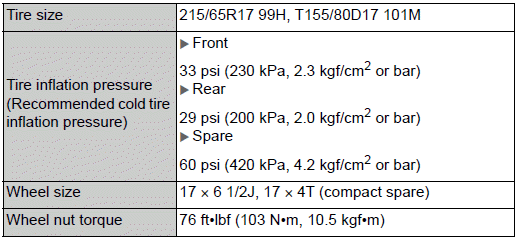

Type A

Specifications

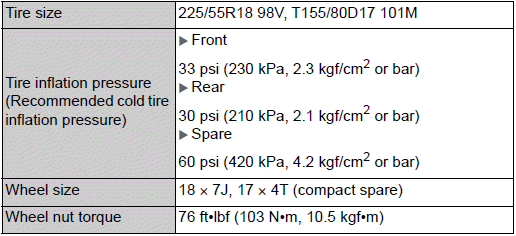

Type B

Specifications

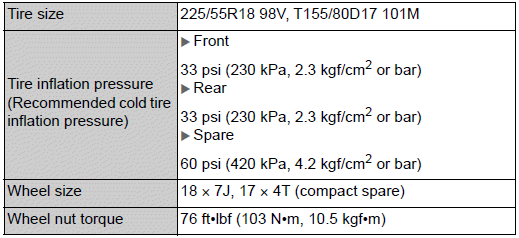

Type C

Specifications

Specifications

Type D

Specifications

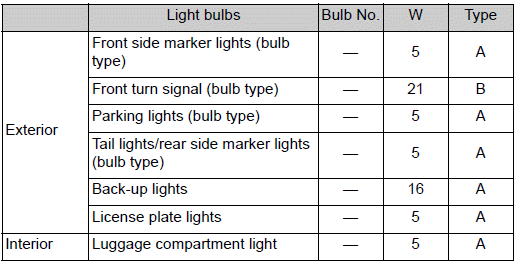

Light bulbs

Specifications

A: Wedge base bulbs (clear)
B: Wedge base bulbs (amber)
