Toyota Corolla Cross: List of storage features

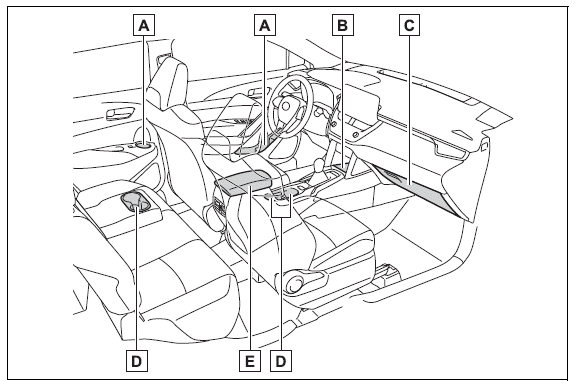

Location of the storage features

Using the storage features

  1. Bottle holders
  2. Open tray (if equipped)
  3. Glove box
  4. Cup holders
  5. Console box

WARNING

■Items that should not be left in the storage spaces

Do not leave glasses, spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:

  • Glasses may be deformed by heat or cracked if they come into contact with other stored items.

Glove box

Using the storage features

Pull up the lever to open the glove box.

■Glove box light (if equipped)

The glove box light turns on when the tail lights are on.

WARNING

■Caution while driving

Keep the glove box closed. In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the open glove box or the items stored inside.

Cup holders

Front

Using the storage features

Rear (if equipped)

Pull the armrest down.

Using the storage features

WARNING

■Items unsuitable for the cup holder

Do not place anything other than cups or beverage cans in the cup holders.

Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury. If possible, cover hot drinks to prevent burns.

Bottle holders

Front

Using the storage features

Rear

Using the storage features

■Bottle holders

  • When storing a bottle, close the cap.
  • The bottle may not be stored depending on its size or shape.

WARNING

■Items unsuitable for the bottle holders

Do not place anything other than a bottle in the bottle holders.

Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.

Console box

Using the storage features

Lift the lid while pulling up the knob.

WARNING

■Caution while driving

Keep the console box closed.

Injuries may result in the event of an accident or sudden braking.

Open tray (if equipped)

Using the storage features

WARNING

■Caution while driving

Observe the following precautions when putting items in the open tray. Failure to do so may cause items to be thrown out of the tray in the event of sudden braking or steering. In these cases, the items may interfere with pedal operation or cause driver distraction, resulting in an accident.

  • Do not store items in the tray that can easily shift or roll out.
  • Do not stack items in the tray higher than the tray's edge.
  • Do not put items in the tray that may protrude over the tray's edge.
