Toyota Corolla Cross: Intake Air Temperature Sensor 1 Bank 1 Circuit Short to Ground (P011011)

DESCRIPTION

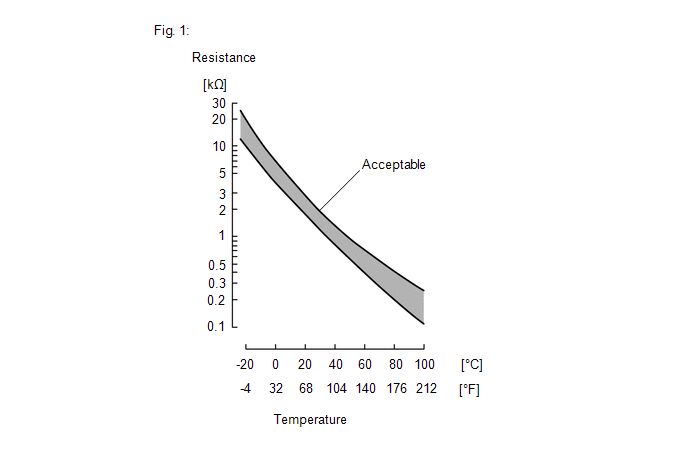

The intake air temperature sensor, mounted on the mass air flow meter sub-assembly, monitors the intake air temperature. The intake air temperature sensor is a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the intake air temperature is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (see Fig. 1).

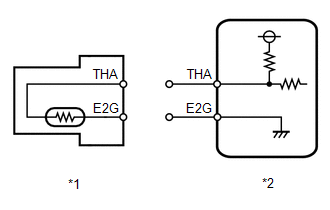

The intake air temperature sensor is powered by a 5 V supply from the THA terminal of the ECM, via resistor R.

Resistor R and the intake air temperature sensor are connected in series. When the resistance value of the intake air temperature sensor changes, according to changes in the intake air temperature, the voltage at terminal THA also varies. Based on this signal, the ECM performs various checks and compensations related to intake air temperature in the engine management system.

HINT:

When DTC P011011 is stored, the ECM enters fail-safe mode. During fail-safe mode, the intake air temperature is estimated to be 20°C (68°F) by the ECM. Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned off.

• *1: except Mexico Models

  *2: for Mexico Models

HINT:

When this DTC is output, check the intake air temperature in the Data List. Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature.

If the Data List values is normal it may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.

Click here

MONITOR DESCRIPTION

When the ignition switch is turned ON and the output voltage of the intake air temperature sensor is less than 0.176 V*1 or 0.142 V*2 for 0.5 seconds or more, the ECM determines that the intake air temperature sensor circuit is malfunctioning and illuminates the MIL and stores a DTC.

• *1: except Mexico Models

  *2: for Mexico Models

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

CONFIRMATION DRIVING PATTERN

HINT:

• After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

  Click here

• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

  Click here

1. Connect the GTS to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the GTS on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON [A].
7. Turn the GTS on.
8. Wait 0.5 seconds or more [B].
9. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
10. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
12. Proceed to the next screen and enter the DTC to be checked.
13. Check the DTC judgment result.

    GTS Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P010012.

Click here

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

(a) Disconnect the intake air temperature sensor connector.

(b) Enter the following menus.

(c) According to the display on the GTS, read the Data List.

OK:

HINT:

Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

Click here

OK

REPLACE MASS AIR FLOW METER SUB-ASSEMBLY

NG

(a) Disconnect the intake air temperature sensor connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
