Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Heating / Air Conditioning / Air Conditioning Pressure Sensor / Installation

INSTALLATION

CAUTION / NOTICE / HINT

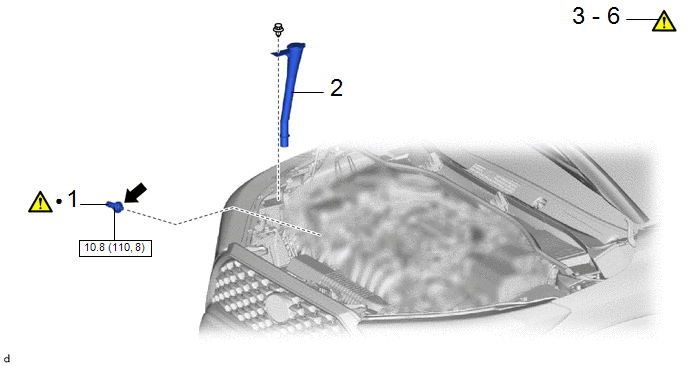

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

AIR CONDITIONER PRESSURE SENSOR

88719A

-

-

2

WASHER INLET SUB-ASSEMBLY

85301

-

-

-

3

CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

-

-

-

4

WARM UP ENGINE

-

-

-

5

WARM UP COMPRESSOR

-

-

-

6

INSPECT FOR REFRIGERANT LEAK

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

for Gasoline Model:

Compressor oil ND-OIL 12 or equivalent

for HEV Model:

Compressor oil ND-OIL 11 or equivalent

-

-

PROCEDURE

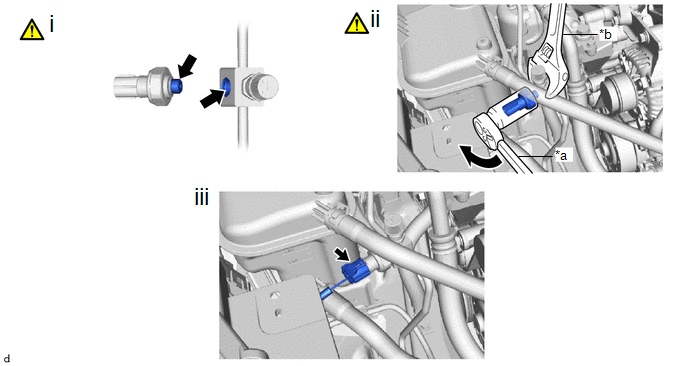

1. INSTALL AIR CONDITIONER PRESSURE SENSOR

*a

Turn

*b

Hold

(1) Remove the vinyl tape from the cooler refrigerant liquid pipe A and sufficiently apply compressor oil to a new air conditioner pressure sensor and the fitting surface of the air conditioner pressure sensor.

Compressor Oil:

for Gasoline Model:

ND-OIL 12 or equivalent

for HEV Model:

ND-OIL 11 or equivalent

(2) Using a 27 mm deep socket wrench, install the air conditioner pressure sensor as shown in the illustration.

Torque:

10.8 N·m {110 kgf·cm, 8 ft·lbf}

(3) Connect the connector.

2. INSTALL WASHER INLET SUB-ASSEMBLY

3. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

Click here

4. WARM UP ENGINE (for Gasoline Model)

Click here

5. WARM UP COMPRESSOR (for HEV Model)

Click here

6. INSPECT FOR REFRIGERANT LEAK

Click here
