Toyota Corolla Cross: Parts Location

PARTS LOCATION

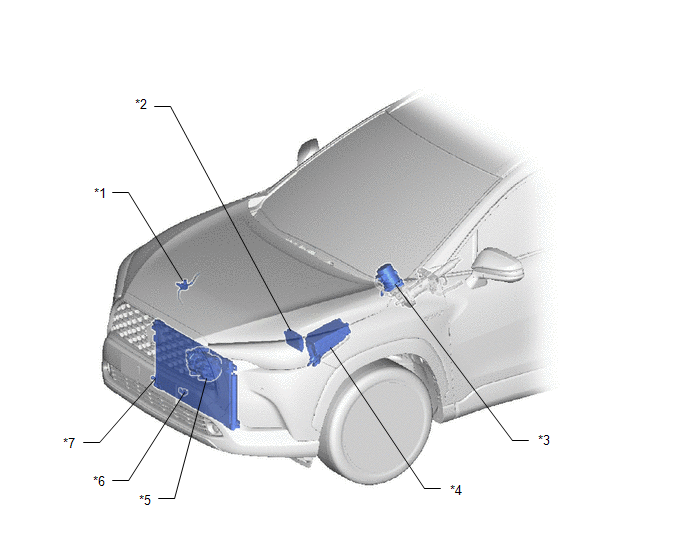

ILLUSTRATION

*1

AIR CONDITIONER PRESSURE SENSOR

*2

ECM

*3

POWER STEERING ECU ASSEMBLY

*4

NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY

- ECU-IGP NO. 3 FUSE

- HTR FUSE

*5

COMPRESSOR WITH PULLEY ASSEMBLY

*6

THERMISTOR ASSEMBLY

*7

COOLER CONDENSER ASSEMBLY

-

-

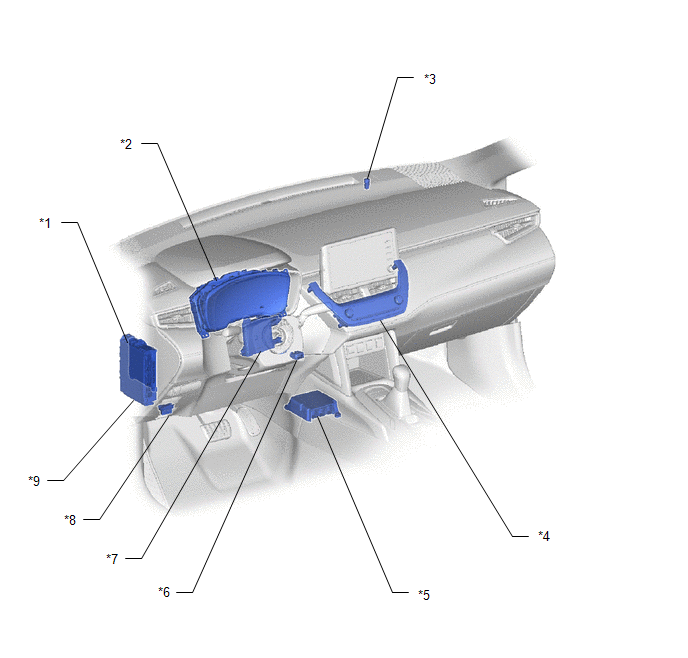

ILLUSTRATION

*1

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*2

COMBINATION METER ASSEMBLY

*3

AUTOMATIC LIGHT CONTROL SENSOR

*4

AIR CONDITIONING CONTROL ASSEMBLY

*5

AIRBAG ECU ASSEMBLY

*6

COOLER THERMISTOR (ROOM TEMPERATURE SENSOR)

*7

AIR CONDITIONING AMPLIFIER ASSEMBLY

*8

DLC3

*9

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-B NO. 2 FUSE

- PANEL FUSE

-

-

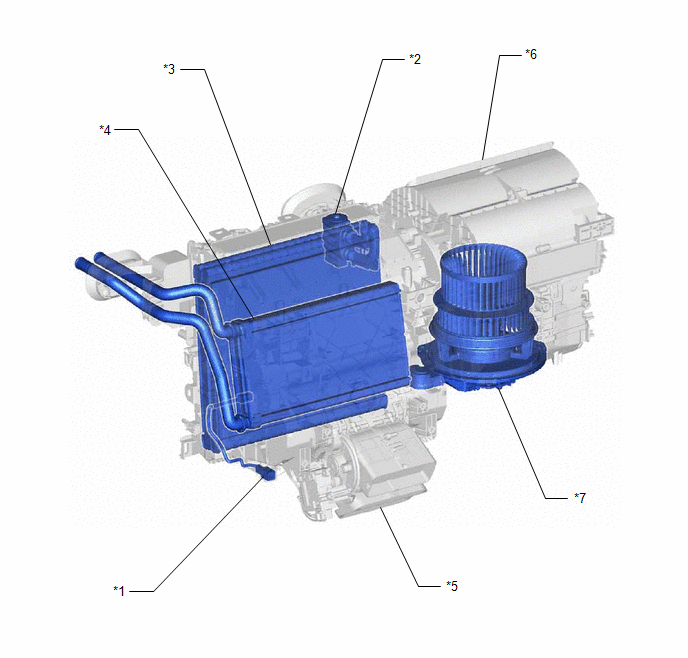

ILLUSTRATION

*1

NO. 1 COOLER THERMISTOR

*2

COOLER EXPANSION VALVE

*3

NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

*4

HEATER RADIATOR UNIT SUB-ASSEMBLY

*5

AIR CONDITIONING RADIATOR ASSEMBLY

*6

BLOWER ASSEMBLY

*7

BLOWER MOTOR WITH FAN SUB-ASSEMBLY

-

-

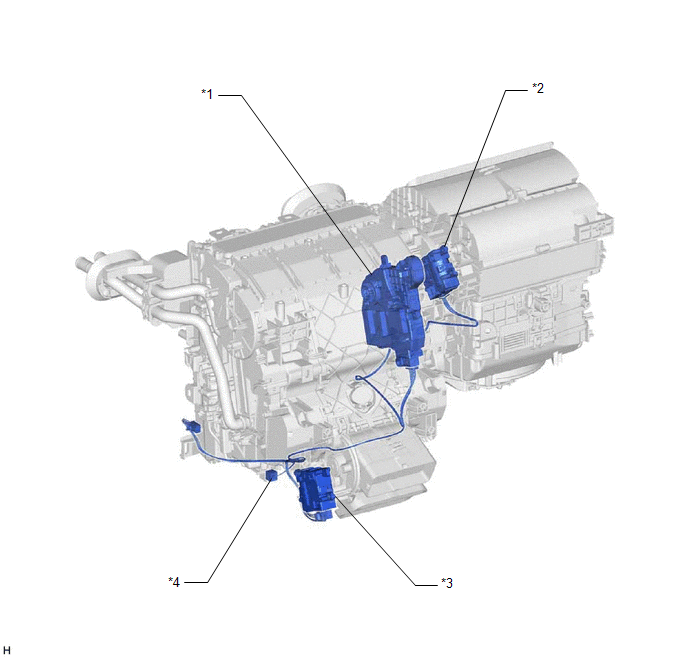

ILLUSTRATION

*1

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

*2

NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

*3

NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

*4

AIR CONDITIONING HARNESS ASSEMBLY
