Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Wiper / Washer / Wiper Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

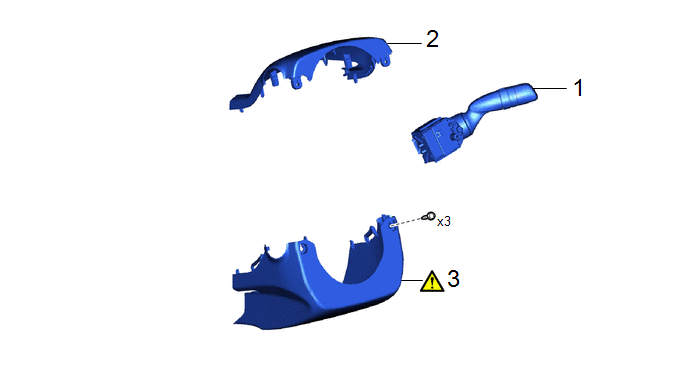

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

WINDSHIELD WIPER SWITCH ASSEMBLY

84650

-

-

-

2

UPPER STEERING COLUMN COVER

45286B

-

-

-

3

LOWER STEERING COLUMN COVER

45287

-

-

PROCEDURE

1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

2. INSTALL UPPER STEERING COLUMN COVER

3. INSTALL LOWER STEERING COLUMN COVER

NOTICE:

If the lower steering column cover sub-assembly is installed in the incorrect order, the parts may break.

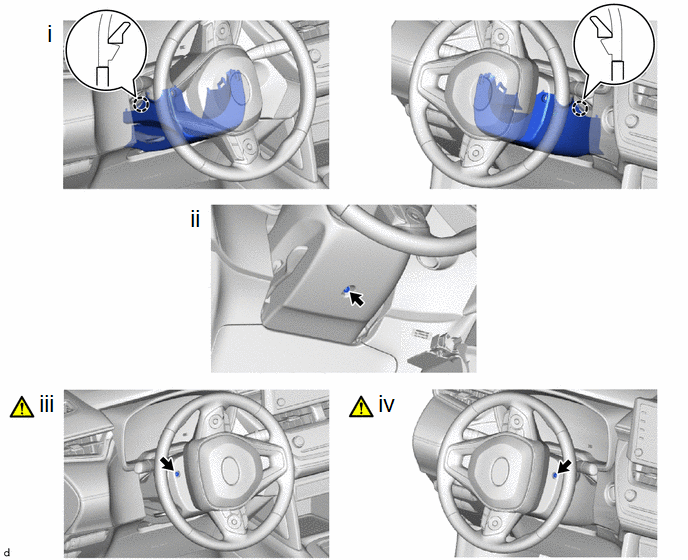

(1) Engage the claws to install the lower steering column cover.

(2) Install the screw.

(3) Turn the steering wheel assembly to the left to install the screw.

(4) Turn the steering wheel assembly to the right to install the screw.
