Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

Procedure		Part Name Code

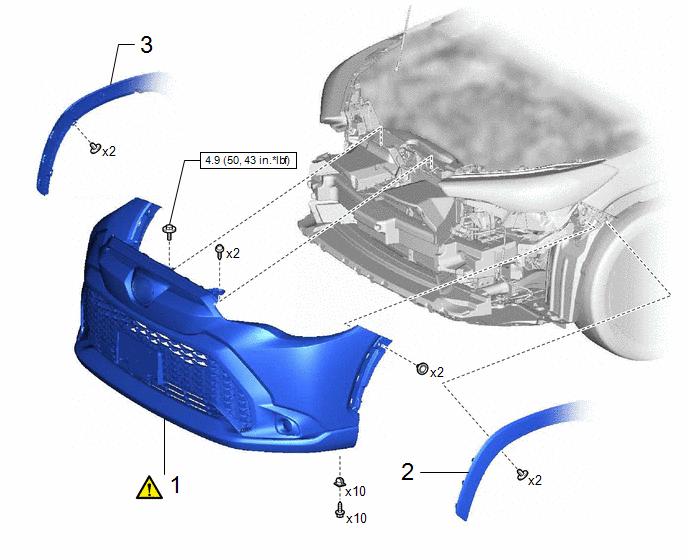

1	FRONT BUMPER ASSEMBLY	-		-	-
2	FRONT FENDER MOULDING SUB-ASSEMBLY LH	75602A	-	-	-
3	FRONT FENDER MOULDING SUB-ASSEMBLY RH	75601A	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL FRONT BUMPER ASSEMBLY

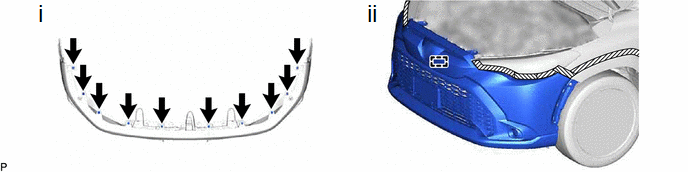

(1) Install the 10 grommets.

(2) Engage the guide to temporarily install the front bumper assembly.

*A	w/ Panoramic View Monitor System	*B	w/ Fog Light
	Pull	-	-

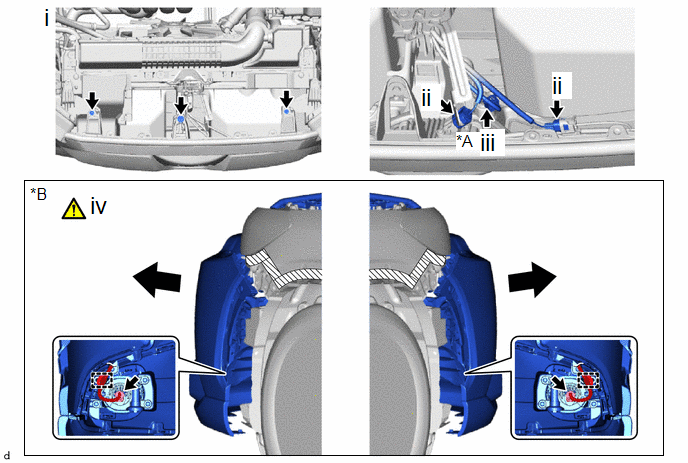

(1) Install the 2 screws and bolt.

Torque:

Bolt :

4.9 N·m {50 kgf·cm, 43 in·lbf}

(2) Connect the 2 connectors.

(3) w/ Pre-collision System:

1. Connect the connector.

(4) w/ Fog Light:

1. Pull back the side of the front bumper assembly as shown in the illustration.

NOTICE:

Do not apply excessive force when pulling back the front bumper assembly.

2. Engage the clamps and connect the 2 connectors.

Install in this Direction

-

-

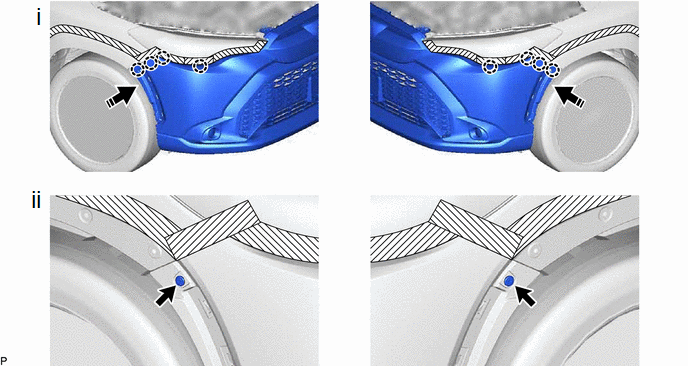

(1) Engage the claws as shown in the illustration.

(2) Install the 2 clips.

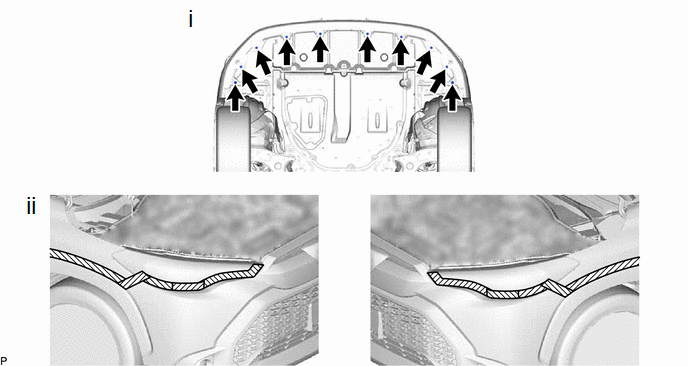

(1) Install the 10 screws.

(2) Remove the protective tape.

2. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY LH

3. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY RH
