Toyota Corolla Cross (2022-2025) Service Manual / Steering / Steering Column / Steering Pad Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

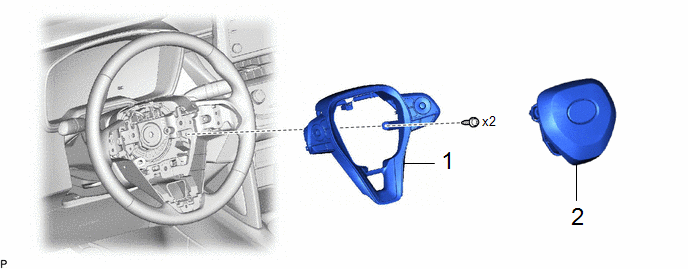

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

STEERING PAD SWITCH ASSEMBLY

84250A

-

-

-

2

HORN BUTTON ASSEMBLY

45130

-

-

-

PROCEDURE

1. INSTALL STEERING PAD SWITCH ASSEMBLY

2. INSTALL HORN BUTTON ASSEMBLY

Click here
