Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

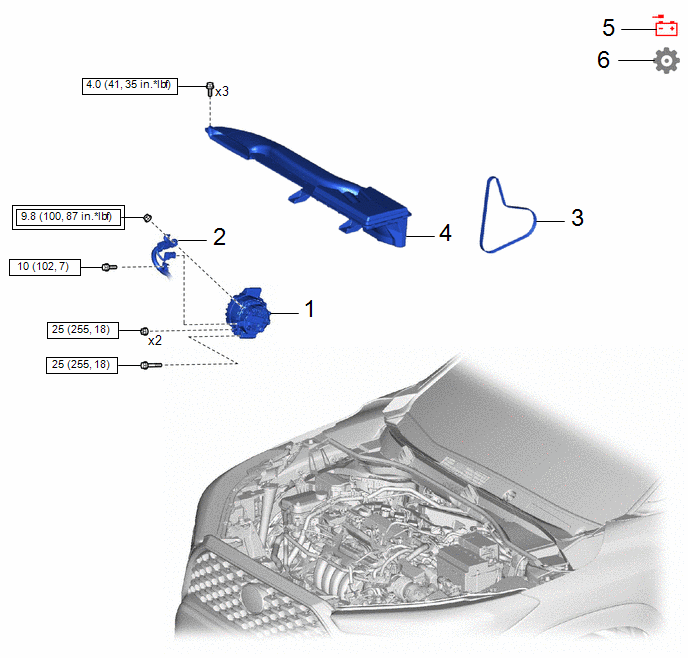

Procedure		Part Name Code
1	GENERATOR ASSEMBLY	27020	-	-	-
2	ENGINE WIRE	82121	-	-	-
3	V-RIBBED BELT	16361A	-	-	-
4	INLET NO. 1 AIR CLEANER	17751	-	-	-
5	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
6	PERFORM INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

PROCEDURE

1. INSTALL GENERATOR ASSEMBLY

Torque:

25 N·m {255 kgf·cm, 18 ft·lbf}

2. INSTALL ENGINE WIRE

Torque:

Bolt :

10 N·m {102 kgf·cm, 7 ft·lbf}

Nut :

9.8 N·m {100 kgf·cm, 87 in·lbf}

3. INSTALL V-RIBBED BELT

Click here

4. INSTALL INLET NO. 1 AIR CLEANER

Click here

5. CONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

6. PERFORM INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
