INSTALLATION

CAUTION / NOTICE / HINT

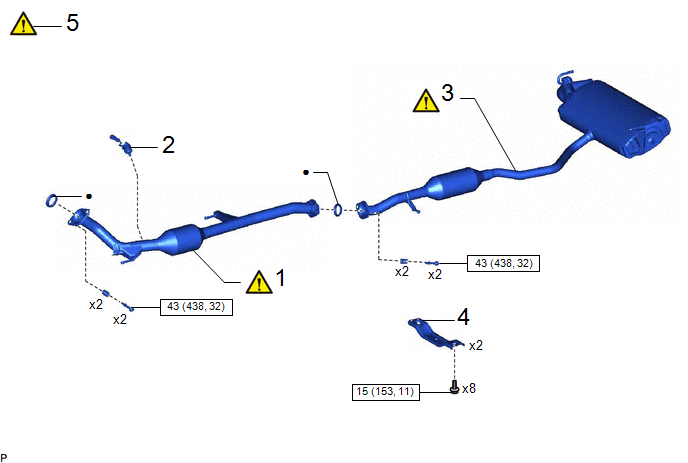

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

17410

-

-

2

AIR FUEL RATIO SENSOR

89467C

-

-

-

3

TAIL EXHAUST PIPE ASSEMBLY

17430

-

-

4

FRONT FLOOR CENTER BRACE

57533B

-

-

-

5

INSPECT FOR EXHAUST GAS LEAK

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

PROCEDURE

1. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

*1

Exhaust Manifold (TWC: Front Catalyst)

*2

Gasket

*a

Wooden Block

*b

Plastic Hammer

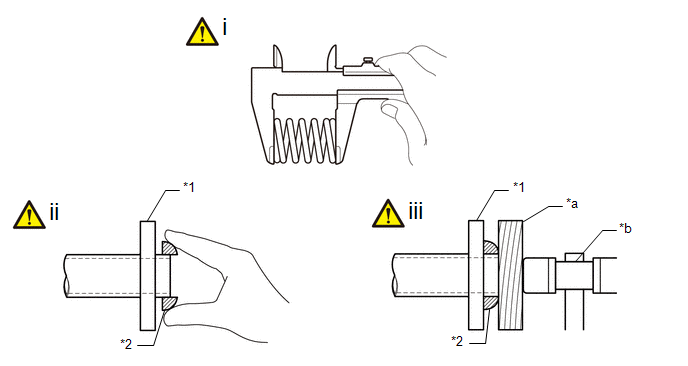

(1) Using a vernier caliper, measure the free length of the compression springs.

Standard Length

43 mm (1.69 in.)

Minimum Free Length

41.5 mm (1.63 in.)

If the free length is less than the minimum, replace the compression spring.

(2) Temporarily install a new gasket to the exhaust manifold (TWC: Front Catalyst).

(3) Using a plastic hammer and wooden block, tap in the gasket until its surface is flush with the exhaust manifold (TWC: Front Catalyst).

NOTICE:

  • Be careful with the installation direction of the gasket.
  • Do not reuse the gasket.
  • Do not damage the gasket.
  • Do not push in the gasket by using the exhaust pipes when connecting them.

*1

Exhaust Manifold (TWC: Front Catalyst)

*2

Front Exhaust Pipe Assembly (TWC: Rear Catalyst)

*3

Gasket

-

-

*a

Space between Flanges: 8.5 mm (0.335 in.)

-

-

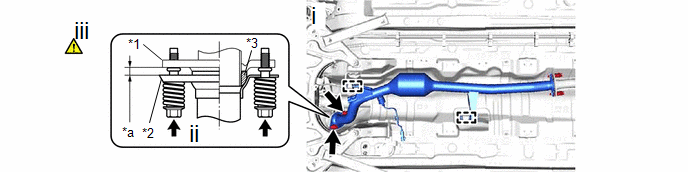

(1) Connect the front exhaust pipe assembly (TWC: Rear Catalyst) to the 2 exhaust pipe supports.

(2) Install the front exhaust pipe assembly (TWC: Rear Catalyst) to the exhaust manifold (TWC: Front Catalyst) with the 2 compression springs and 2 bolts.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

(3) After installation, check that the space between the flanges of the exhaust manifold and front exhaust pipe assembly is consistent front-to-rear and left-to-right.

2. INSTALL AIR FUEL RATIO SENSOR

Click here

3. INSTALL TAIL EXHAUST PIPE ASSEMBLY

*1

Front Exhaust Pipe Assembly (TWC: Rear Catalyst)

*2

Gasket

*a

Wooden Block

*b

Plastic Hammer

(1) Using a vernier caliper, measure the free length of the compression springs.

Standard Length

40 mm (1.57 in.)

Minimum Free Length

38.5 mm (1.52 in.)

If the free length is less than the minimum, replace the compression spring.

(2) Temporarily install a new gasket to the front exhaust pipe assembly (TWC: Rear Catalyst).

(3) Using a plastic hammer and wooden block, tap in the gasket until its surface is flush with the front exhaust pipe assembly (TWC: Rear Catalyst).

NOTICE:

  • Be careful with the installation direction of the gasket.
  • Do not reuse the gasket.
  • Do not damage the gasket.
  • Do not push in the gasket by using the exhaust pipes when connecting them.

*1

Front Exhaust Pipe Assembly (TWC: Rear Catalyst)

*2

Tail Exhaust Pipe Assembly

*3

Gasket

-

-

*a

Space between Flanges: 6.5 mm (0.256 in.)

-

-

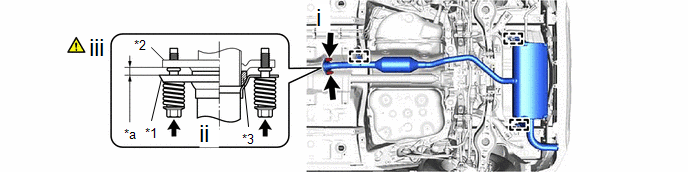

(1) Connect the tail exhaust pipe assembly to the 3 exhaust pipe supports.

(2) Install the tail exhaust pipe assembly to the front exhaust pipe assembly (TWC: Rear Catalyst) with the 2 compression springs and 2 bolts.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

(3) After installation, check that the space between the flanges of the tail exhaust pipe assembly and front exhaust pipe assembly (TWC: Rear Catalyst) is consistent front-to-rear and left-to-right.

4. INSTALL FRONT FLOOR CENTER BRACE

Click here

5. INSPECT FOR EXHAUST GAS LEAK

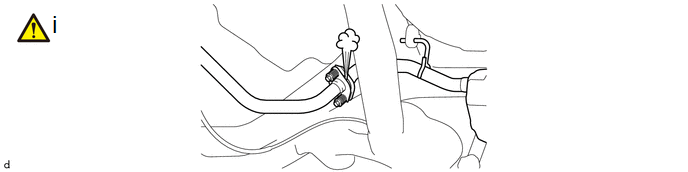

(1) If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

HINT:

Perform "Inspection After Repairs" after repairing or replacing the exhaust system.

Click here
