Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

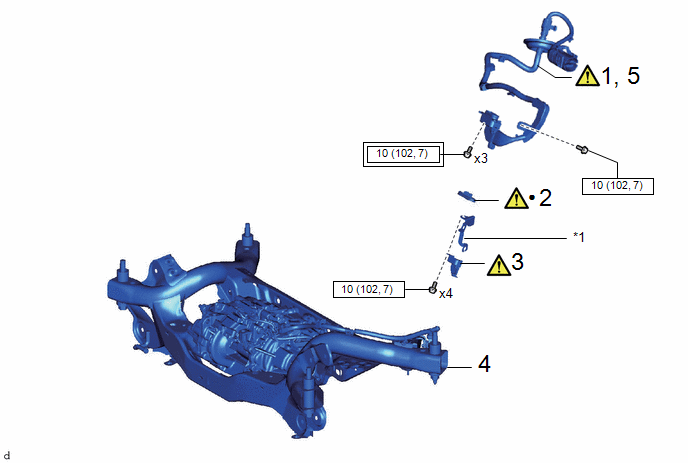

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

INSTALL REAR TRACTION MOTOR CABLE

G1149

-

-

2

MOTOR CABLE TERMINAL CAP

G114D

-

-

3

CONNECTOR COVER

82821T

-

-

4

REAR SUSPENSION MEMBER SUB-ASSEMBLY

51206A

-

-

-

5

INSTALL REAR TRACTION MOTOR CABLE

G1149

-

-

*1

CONNECTOR COVER BRACKET

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

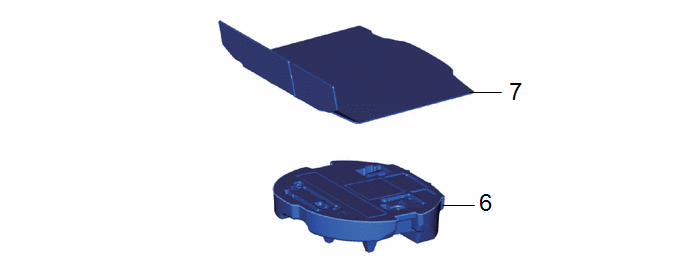

Procedure

Part Name Code

6

SPARE WHEEL CUSHION

64777J

-

-

-

7

REAR DECK FLOOR BOX

58410B

-

-

-

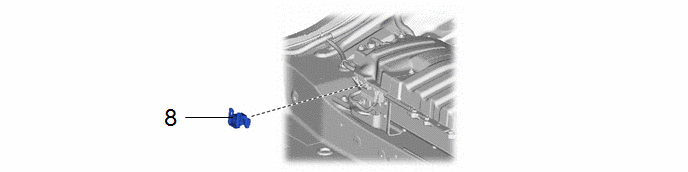

Procedure

Part Name Code

8

SERVICE PLUG GRIP

G3834

-

-

-

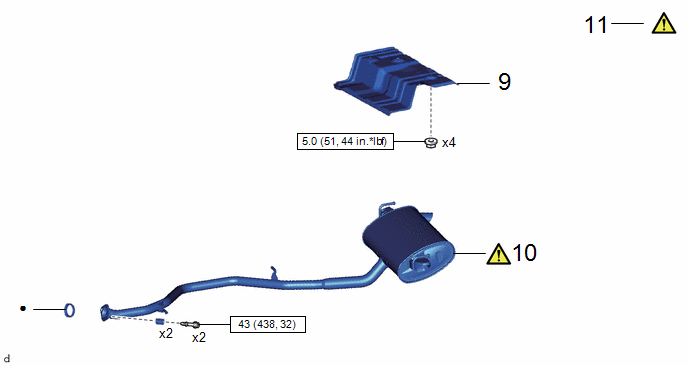

Procedure

Part Name Code

9

MAIN MUFFLER UPPER HEAT INSULATOR

58327D

-

-

-

10

TAIL EXHAUST PIPE ASSEMBLY

17430

-

-

11

INSPECT FOR EXHAUST GAS LEAK

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

PROCEDURE

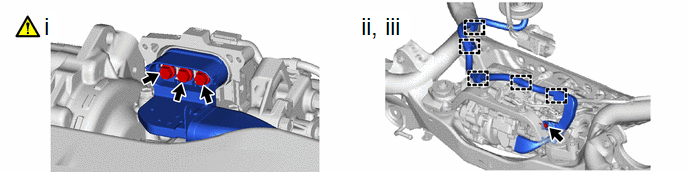

1. INSTALL REAR TRACTION MOTOR CABLE

CAUTION:

Be sure to wear insulated gloves.

(1) Using an insulated tool, install the rear traction motor cable to the rear traction motor with transaxle assembly with the 3 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

Keep the rear traction motor cable terminals and their installation area free from foreign matter, water, etc.

(2) Install the rear traction motor cable with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(3) Engage the 5 clamps to install the rear traction motor cable.

2. INSTALL MOTOR CABLE TERMINAL CAP

CAUTION:

Be sure to wear insulated gloves.

NOTICE:

  • Keep the motor cable terminal cap and their installation area free from foreign matter, water, etc.
  • Do not pinch the O-ring.
  • Check that the motor cable terminal cap is securely installed.

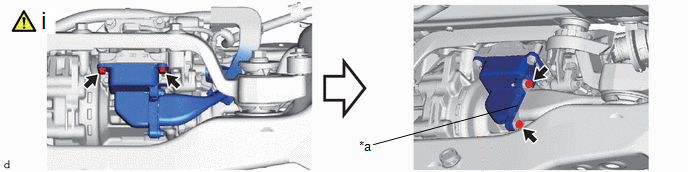

3. INSTALL CONNECTOR COVER

CAUTION:

Be sure to wear insulated gloves.

*a

CONNECTOR COVER BRACKET

-

-

(1) Install the connector cover and connector cover bracket with the 4 bolts as shown in the illustration.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

4. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

Click here

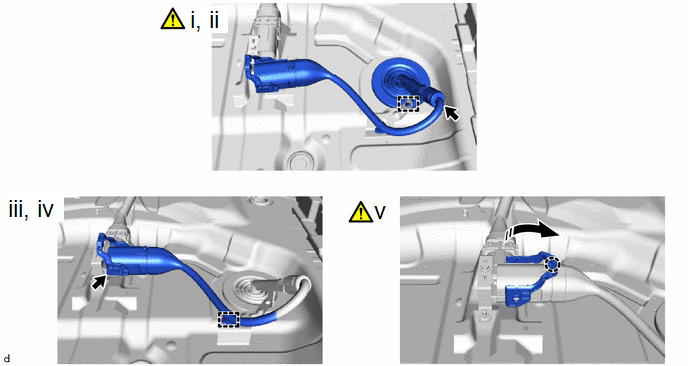

5. INSTALL REAR TRACTION MOTOR CABLE

CAUTION:

Be sure to wear insulated gloves.

(1) Pass the rear traction motor cable through into the vehicle body, and install the grommet to the vehicle body.

(2) Engage the clamp to install the rear traction motor cable.

(3) Engage the clamp to install the rear traction motor cable.

(4) Connect the connector.

(5) Push down the lock lever to engage the claw as shown in the illustration.

6. INSTALL SPARE WHEEL CUSHION

7. INSTALL DECK BOARD ASSEMBLY

8. INSTALL SERVICE PLUG GRIP

Click here

9. INSTALL MAIN MUFFLER UPPER HEAT INSULATOR

Torque:

5.0 N·m {51 kgf·cm, 44 in·lbf}

10. INSTALL TAIL EXHAUST PIPE ASSEMBLY

Click here

11. INSPECT FOR EXHAUST GAS LEAK

Click here
