Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Navigation / Multi Info Display / Navigation Antenna / Installation

INSTALLATION

CAUTION / NOTICE / HINT

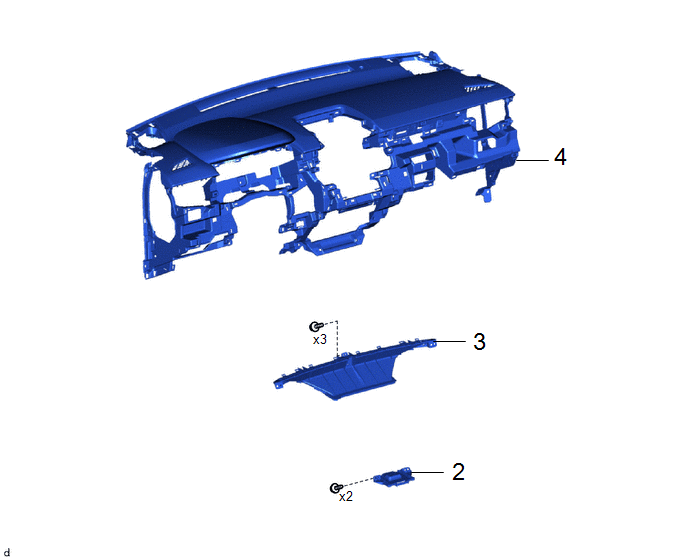

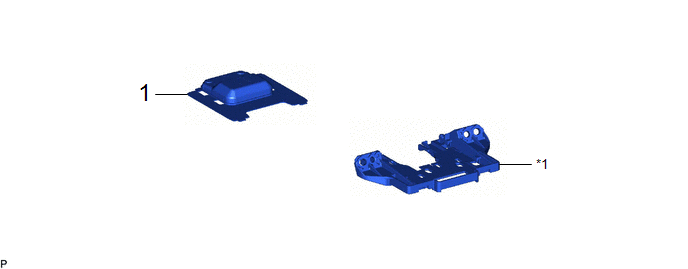

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NAVIGATION ANTENNA ASSEMBLY

86860

-

-

-

*1

NAVIGATION ANTENNA BRACKET

-

-

Procedure

Part Name Code

2

NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

-

-

-

-

3

DEFROSTER NOZZLE ASSEMBLY

55950G

-

-

-

4

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

-

-

-

-

PROCEDURE

1. INSTALL NAVIGATION ANTENNA ASSEMBLY

2. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

3. INSTALL DEFROSTER NOZZLE ASSEMBLY

4. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click here

    READ NEXT:

     Navigation Antenna Cord

     Removal

    REMOVAL CAUTION / NOTICE / HINT COMPONENTS (REMOVAL) Procedure Part Name Code 1 INSTRUMENT PANEL SAFETY PAD ASSEMBLY

     Installation

    INSTALLATION CAUTION / NOTICE / HINT COMPONENTS (INSTALLATION) Procedure Part Name Code 1 ANTENNA CORD SUB-ASSEMBLY
