INSTALLATION

CAUTION / NOTICE / HINT

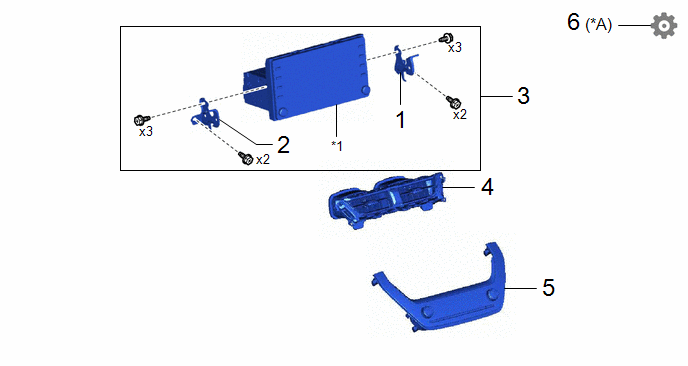

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	NO. 1 RADIO RECEIVER BRACKET	86211J	-	-	-
2	NO. 2 RADIO RECEIVER BRACKET	86212C	-	-	-
3	RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET	-	-	-	-
4	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY	55670A	-	-	-
5	AIR CONDITIONING CONTROL ASSEMBLY	55900	-	-	-
6	PERFORM REGISTRATION	-	-	-

*A	w/ Telematics Transceiver	-	-
*1	RADIO AND DISPLAY RECEIVER ASSEMBLY	-	-

PROCEDURE

1. INSTALL NO. 1 RADIO RECEIVER BRACKET

2. INSTALL NO. 2 RADIO RECEIVER BRACKET

3. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

4. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

5. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

Click here

6. PERFORM REGISTRATION (w/ Telematics Transceiver)

HINT:

When replacing the radio and display receiver assembly, perform registration.

Click here
