Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Audio / Video / Rear Door Speaker / Removal

REMOVAL

CAUTION / NOTICE / HINT

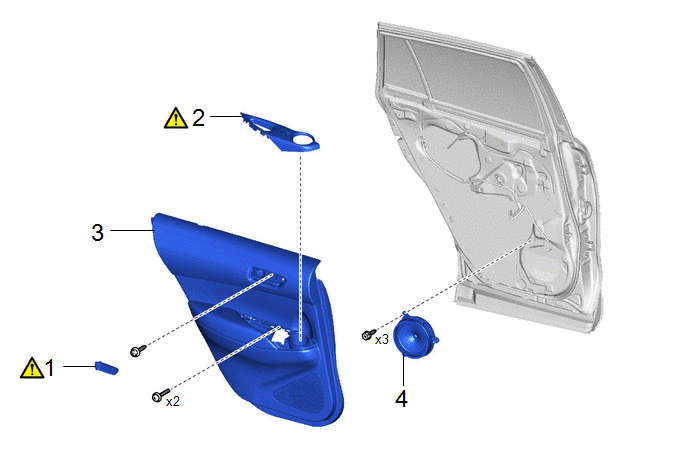

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR DOOR INSIDE HANDLE BEZEL PLUG

69284G

-

-

2

REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

-

-

-

3

REAR DOOR TRIM BOARD SUB-ASSEMBLY

67604

-

-

-

4

REAR SPEAKER ASSEMBLY

86160B

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

Click here

2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click here

3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

Click here

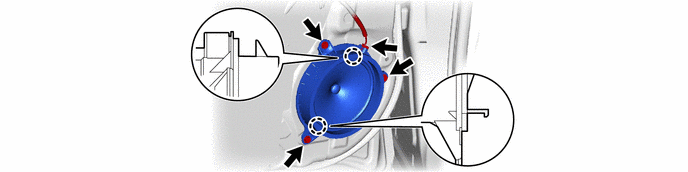

4. REMOVE REAR SPEAKER ASSEMBLY
