Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

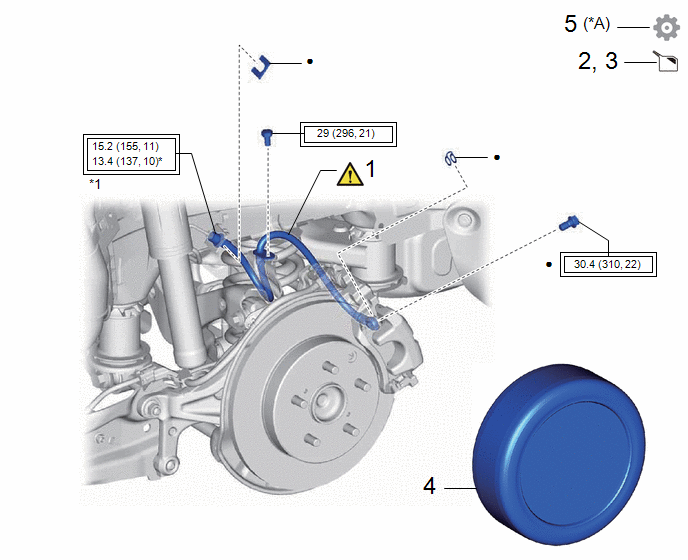

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR FLEXIBLE HOSE

47319F

-

-

2

ADD BRAKE FLUID

-

-

-

3

BLEED BRAKE LINE

-

-

-

4

REAR WHEEL

-

-

-

-

5

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

*A

for HEV Model

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Non-reusable part

-

-

CAUTION / NOTICE / HINT

NOTICE:

  • Because the left and right rear flexible hoses are not interchangeable, verify the part number when installing the rear flexible hoses.
  • When reusing the rear flexible hoses, use the identification marks created during removal to install each rear flexible hose to its original position.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

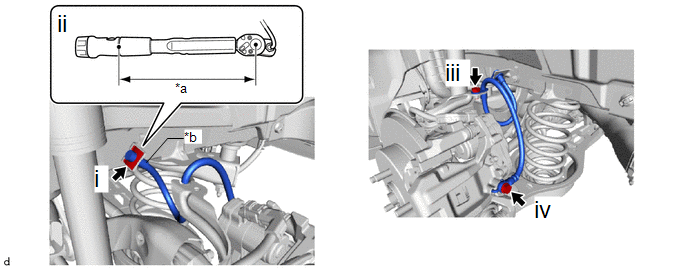

1. INSTALL REAR FLEXIBLE HOSE

NOTICE:

When installing the rear flexible hose, minimize twisting of the hose.

*a

Torque Wrench Fulcrum Length

*b

Identification Mark

(1) Install the rear flexible hose with a new clip.

NOTICE:

  • Install the clip as far as it will go.
  • When installing the rear flexible hose LH, face the identification mark to the upper side of the vehicle.

(2) Using a union nut wrench, connect the brake line to the rear flexible hose while holding the rear flexible hose with a wrench.

Torque:

Specified tightening torque :

15.2 N·m {155 kgf·cm, 11 ft·lbf}

NOTICE:

  • Do not kink or damage the brake line.
  • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

    13.4 N*m (137 kgf*cm, 10 ft.*lbf)

(3) Install the rear flexible hose LH to the rear flexible hose bracket with the bolt.

Torque:

29 N·m {296 kgf·cm, 21 ft·lbf}

(4) Install the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:

30.4 N·m {310 kgf·cm, 22 ft·lbf}

NOTICE:

Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

2. ADD BRAKE FLUID

  • for HEV model:

    Click here

  • for Gasoline model:

    Click here

3. BLEED BRAKE LINE

  • for HEV model: Click here
  • for Gasoline model: Click here

4. INSTALL REAR WHEEL

Click here

5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (for HEV Model)

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
