Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

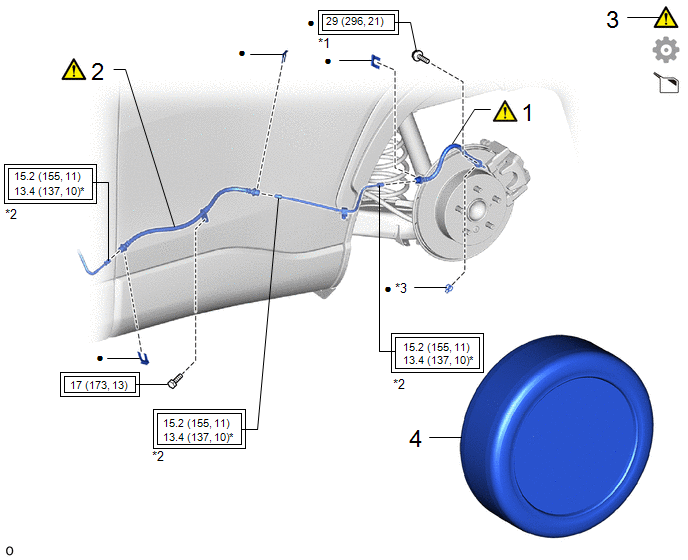

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR FLEXIBLE HOSE

47319F

-

-

2

REAR BRAKE TUBE FLEXIBLE HOSE

47316A

-

-

3

BLEED BRAKE LINE

-

-

-

4

REAR WHEEL

-

-

-

-

*1

UNION BOLT

*2

BRAKE LINE

*3

GASKET

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Non-reusable part

-

-

CAUTION / NOTICE / HINT

NOTICE:

When reusing the rear brake tube flexible hoses, use the identification marks created during removal to install each rear brake tube flexible hose to its original position.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

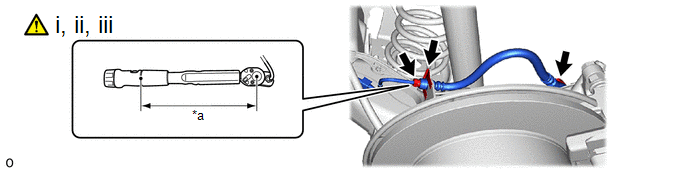

1. INSTALL REAR FLEXIBLE HOSE

NOTICE:

When installing the rear flexible hose, minimize twisting of the hose.

*a

Torque Wrench Fulcrum Length

-

-

(1) Install the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:

29 N·m {296 kgf·cm, 21 ft·lbf}

NOTICE:

Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

(2) Install the rear flexible hose with a new clip.

NOTICE:

Install the clip as far as it will go.

(3) Using a union nut wrench, connect the brake line to the rear flexible hose while holding the rear flexible hose with a wrench.

Torque:

Specified tightening torque :

15.2 N·m {155 kgf·cm, 11 ft·lbf}

NOTICE:

  • Do not kink or damage the brake line.
  • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

    13.4 N*m (137 kgf*cm, 10 ft.*lbf)

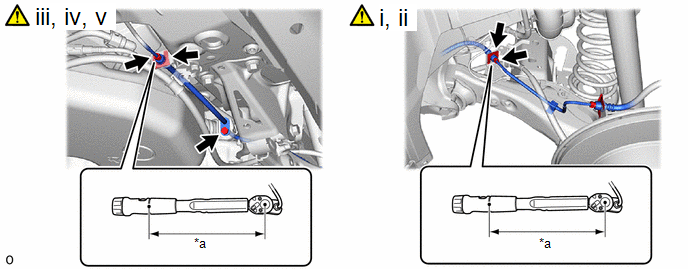

2. INSTALL REAR BRAKE TUBE FLEXIBLE HOSE

NOTICE:

When installing the rear brake tube flexible hose, minimize twisting of the hose.

*a

Torque Wrench Fulcrum Length

-

-

(1) Install the rear brake tube flexible hose with a new clip.

NOTICE:

  • Install the clip as far as it will go.
  • When installing the rear brake tube flexible hose, face the identification mark to the upper side of the vehicle.

(2) Using a union nut wrench, connect the brake line to the rear brake tube flexible hose while holding the rear brake tube flexible hose with a wrench.

Torque:

Specified tightening torque :

15.2 N·m {155 kgf·cm, 11 ft·lbf}

NOTICE:

  • Do not kink or damage the brake line.
  • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

    13.4 N*m (137 kgf*cm, 10 ft.*lbf)

(3) Install the rear brake tube flexible hose to the flexible hose bracket with the bolt.

Torque:

17 N·m {173 kgf·cm, 13 ft·lbf}

(4) Install the rear brake tube flexible hose with a new clip.

NOTICE:

Install the clip as far as it will go.

(5) Using a union nut wrench, connect the brake line to the rear brake tube flexible hose while holding the rear brake tube flexible hose with a wrench.

Torque:

Specified tightening torque :

15.2 N·m {155 kgf·cm, 11 ft·lbf}

NOTICE:

  • Do not kink or damage the brake line.
  • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

    13.4 N*m (137 kgf*cm, 10 ft.*lbf)

3. BLEED BRAKE LINE

Click here

4. INSTALL REAR WHEEL

Click here
