Toyota Corolla Cross: Inspection

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Lighting (int) / Ambient Light / Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT DOOR AMBIENT LIGHT LH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH)

(a) Check the illumination.

(1) Apply auxiliary battery voltage to the front door ambient light LH (front door trim board sub-assembly LH) and check that the light illuminates.

OK:

Tester Connection

Specified Condition

L5-2 (+) - Auxiliary battery positive (+)

L5-1 (-) - Auxiliary battery negative (-)

Front door ambient light LH illuminates

If the result is not as specified, replace the front door ambient light LH (front door trim board sub-assembly LH).

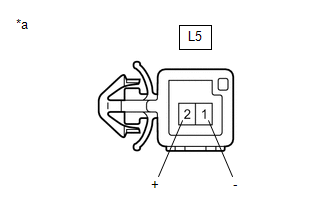

*a

Component without harness connected

(Front Door Ambient Light LH (Front Door Trim Board Sub-assembly LH))

2. INSPECT FRONT DOOR AMBIENT LIGHT RH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH)

(a) Check the illumination.

(1) Apply auxiliary battery voltage to the front door ambient light RH (front door trim board sub-assembly RH) and check that the light illuminates.

OK:

Tester Connection

Specified Condition

K6-2 (+) - Auxiliary battery positive (+)

K6-1 (-) - Auxiliary battery negative (-)

Front door ambient light RH illuminates

If the result is not as specified, replace the front door ambient light RH (front door trim board sub-assembly RH).

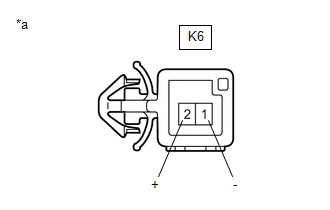

*a

Component without harness connected

(Front Door Ambient Light RH (Front Door Trim Board Sub-assembly RH))
