Toyota Corolla Cross: Inspection
INSPECTION
CAUTION / NOTICE / HINT
CAUTION:
Ensure that fingers or articles of clothing do not get caught in moving parts when performing this test.
PROCEDURE
1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

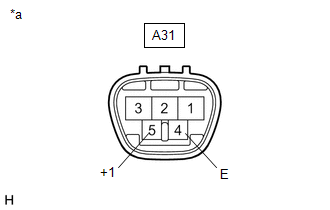

(a) Check the LO operation.
| (1) Apply auxiliary battery voltage to the windshield wiper motor connector and check the speed of the windshield wiper motor assembly.
OK: |
Auxiliary Battery Connection |
Specified Condition | |
A31-5 (+1) - Auxiliary battery positive (+) A31-4 (E) - Auxiliary battery positive (-) |
Motor operates at low speed (LO) |
If the result is not as specified, replace the windshield wiper motor assembly. |
 |
|
*a | Component without harness connected
(Windshield Wiper Motor Assembly) | | |

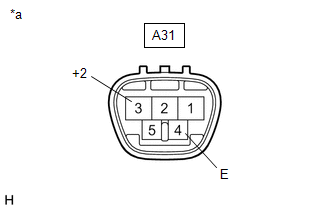

(b) Check the HI operation.
| (1) Apply auxiliary battery voltage to the windshield wiper motor connector and check the speed of the windshield wiper motor assembly.
OK: |
Auxiliary Battery Connection |
Specified Condition | |
A31-3 (+2) - Auxiliary battery positive (+) A31-4 (E) - Auxiliary battery positive (-) |
Motor operates at high speed (HI) |
If the result is not as specified, replace the windshield wiper motor assembly. |
 |
|
*a | Component without harness connected
(Windshield Wiper Motor Assembly) | | |
