Toyota Corolla Cross: Exhaust Gas Recirculation "A" Flow (P040000-P04029B)

DESCRIPTION

Based on the driving conditions, the ECM regulates the volume of exhaust gas that is recirculated to each engine cylinder in order to lower the combustion temperature and reduce NOx emissions. The ECM monitors signals such as engine speed, engine coolant temperature, electric load, and vehicle speed. When the EGR permission conditions are met, the ECM controls the opening of the EGR valve linearly through signals to the EGR step motor.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P040000

Exhaust Gas Recirculation "A" Flow

During fuel cut, when the change in intake manifold pressure when the EGR valve assembly is operating and when not operating is insufficient (2 trip detection logic).

  • EGR valve assembly
  • EGR passage
  • EGR cooler assembly
  • Intake system
  • Manifold absolute pressure sensor

Comes on

  • SAE Code: P0400
  • DTC for Mexico Models: Does not apply

P04019C

Exhaust Gas Recirculation "A" Low / Insufficient Flow

  • During fuel cut, when the change in intake manifold pressure when the EGR valve assembly is operating and when not operating is insufficient, the intake manifold pressure is less than 26.95 kPa (3.91 psi) when the EGR valve assembly is not operating (1 trip detection logic) (except Mexico Models).
  • Charge in intake manifold pressure is small when the EGR valve opened and closed during fuel cut operation (2 trip detection logic) (for Mexico Models).
  • EGR valve assembly
  • EGR passage
  • EGR cooler assembly
  • Manifold absolute pressure sensor

Comes on

  • SAE Code: P0401
  • DTC for Mexico Models: Applies

P04029B

Exhaust Gas Recirculation "A" High/Excessive Flow

During fuel cut, when the change in intake manifold pressure when the EGR valve assembly is operating and not operating is insufficient, the intake manifold pressure is 26.95 kPa (3.91 psi) or more when the EGR valve assembly is not operating (1 trip detection logic).

  • EGR valve assembly
  • EGR passage
  • Intake system
  • Manifold absolute pressure sensor

Comes on

  • SAE Code: P0402
  • DTC for Mexico Models: Does not apply

HINT:

DTC P04019C or DTC P04029B will only be stored when DTC P040000 is stored in the second trip (except Mexico Models).

MONITOR DESCRIPTION

except Mexico Models

  • P040000

    During fuel cut (vehicle being driven with idle ON), when the change in intake manifold pressure when the EGR valve assembly is operating and not operating is insufficient, the ECM determines that the EGR valve is stuck and stores DTC P040000 and illuminates the MIL.

  • P04019C

    During fuel cut (vehicle being driven with idle ON), when the change in intake manifold pressure when the EGR valve assembly is operating and not operating is insufficient, the intake manifold pressure is less than the threshold when the EGR valve assembly is not operating, the ECM determines that the flow through the EGR valve is hindered and stores DTC P04019C and illuminates the MIL.

  • P04029B

    During fuel cut (vehicle being driven with idle ON), when the change in intake manifold pressure when the EGR valve assembly is operating and not operating is insufficient, the intake manifold pressure is more than the threshold when the EGR valve assembly is not operating, the ECM determines that the flow through the EGR valve is excessive and stores DTC P04029B and illuminates the MIL.

for Mexico Models

  • P04019C

    The ECM monitors the pressure inside the intake manifold while opening and closing the EGR valve during fuel cut operation. If there is no change in the manifold absolute pressure sensor value, the ECM interprets this as a malfunction of the EGR valve assembly, illuminates the MIL and stores this DTC.

MONITOR STRATEGY

P0400 (except Mexico Models)

Related DTC

P0400: EGR valve flow functional

Required Sensors/Components (Main)

EGR valve assembly

Manifold absolute pressure sensor

Required Sensors/Components (Related)

Crankshaft position sensor

Camshaft position sensor

Vehicle speed sensor

Engine coolant temperature sensor

Mass air flow meter sub-assembly

Frequency of Operation

Once per driving cycle

Duration

Within 5 seconds

MIL operation

2 driving cycles

Sequence of operation

None

P0401, P0402 (except Mexico Models)

Related DTC

P0401: EGR valve low flow rate

P0402: EGR valve high flow rate

Required Sensors/Components (Main)

EGR valve assembly

Manifold absolute pressure sensor

Required Sensors/Components (Related)

Crankshaft position sensor

Camshaft position sensor

Vehicle speed sensor

Engine coolant temperature sensor

Mass air flow meter sub-assembly

Frequency of Operation

Once per driving cycle

Duration

Within 5 seconds

MIL operation

1 driving cycle

Sequence of operation

Stored when DTC P040000 is stored in the second trip

P0401 (for Mexico Models)

Related DTC

P0401: EGR valve high flow rate/low flow rate

Required Sensors/Components (Main)

EGR valve assembly

Manifold absolute pressure sensor

Required Sensors/Components (Related)

Engine coolant temperature sensor

Frequency of Operation

Once per driving cycle

Duration

Within 3 seconds

MIL operation

2 driving cycles

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

P0400, P0402 (except Mexico Models)

Monitor runs whenever the following DTCs are not stored

None

Time after engine started

3 seconds or more

Time after engine fuel cut

2.5 seconds or more

Engine speed

900 to 1650 rpm

Vehicle speed

35 km/h (22 mph) or more

Shift position

Except P or N

Engine coolant temperature

75°C (167°F) or higher

Auxiliary battery voltage

11 V or higher

Intake air temperature

-10°C (14°F) or higher

Atmospheric pressure

76 kPa(abs) [11 psi(abs)] or higher

P0401

Monitor runs whenever the following DTCs are not stored

P0010, P1360, P1362, P1364, P1366, P2614 (Motor drive VVT system control module)

P0011 (VVT system - advance)

P0012 (VVT system - retard)

P0013 (Exhaust VVT oil control solenoid)

P0014 (Exhaust VVT system - advance)

P0015 (Exhaust VVT system - retard)

P0016 (VVT system - misalignment)

P0017 (Exhaust VVT system - misalignment)

P0031, P0032, P101D (Air fuel ratio sensor (sensor 1) heater)

P0101, P0102, P0103 (Mass air flow meter)

P0106, P0107, P0108 (Manifold absolute pressure)

P0111, P0112, P0113 (Intake air temperature sensor)

P0116, P0117, P0118 (Engine coolant temperature sensor)

P0121, P0122, P0123, P0222, P0223, P2135 (Throttle position sensor)

P0125 (Insufficient coolant temperature for closed loop fuel control)

P014C, P014D, P015A, P015B, P2195, P2196, P2237, P2238, P2239, P2252, P2253, P2A00 (Air fuel ratio sensor (sensor 1))

P0171, P0172 (Fuel system)

P0327, P0328 (Knock control sensor)

P0335, P0337, P0338 (Crankshaft position sensor)

P0340, P0342, P0343 (Camshaft position sensor)

P0365, P0367, P0368 (Exhaust camshaft position sensor)

P0489, P0490 (EGR control circuit)

P0500 (Vehicle speed sensor)

P0657, P0658, P2102, P2103, P2111, P2112, P2119 (Throttle actuator)

P106A (Evaporative emission control system pressure sensor - manifold pressure sensor correlation)

P11EA, P11EC, P11ED, P11EE, P11EF, P219A, P219C, P219D, P219E, P219F (Air-fuel ratio imbalance)

P2228, P2229 (Atmospheric pressure sensor)

Time after engine started

3 seconds or more

Time after engine fuel cut

2.5 seconds or more

Engine speed

900 to 1650 rpm

Vehicle speed

35 km/h (22 mph) or more

Shift position

Except P or N

Engine coolant temperature

75°C (167°F) or higher

Auxiliary battery voltage

11 V or higher

Intake air temperature

-10°C (14°F) or higher

Atmospheric pressure

76 kPa(abs) [11 psi(abs)] or higher

TYPICAL MALFUNCTION THRESHOLDS

P0400 (except Mexico Models)

Manifold pressure change*

Less than 0.39 kPa [0.06 psi] (at engine speed 1400 rpm)

P0401 (except Mexico Models)

Manifold pressure change*

Less than 0.39 kPa [0.06 psi] (at engine speed 1400 rpm)

Manifold pressure

Less than 26.95 kPa [3.91 psi]

P0402 (except Mexico Models)

Manifold pressure change*

Less than 0.39 kPa [0.06 psi] (at engine speed 1400 rpm)

Manifold pressure

26.95 kPa [3.91 psi] or more

*: Calculated by EGR valve open and close

-

P0401 (for Mexico Models)

Manifold pressure change

Less than 0.70 kPa [0.10 psi]

At engine speed

2400 rpm

MONITOR RESULT

Refer to detailed information in Checking Monitor Status.

Click here

P0400: Exhaust Gas Recirculation / VVT / EGR FLOW

Monitor ID

Test ID

Scaling

Unit

Description

$31

$C0

Multiply by 0.01

kPa

Delta manifold absolute pressure

P0401: Exhaust Gas Recirculation / VVT / EGR FLOW INSUFFICIENCY

Monitor ID

Test ID

Scaling

Unit

Description

$31

$BD

Multiply by 0.01

kPa

Reference manifold absolute pressure low flow

P0402: Exhaust Gas Recirculation / VVT / EGR FLOW EXCESS

Monitor ID

Test ID

Scaling

Unit

Description

$31

$BE

Multiply by 0.01

kPa

Reference manifold absolute pressure high flow

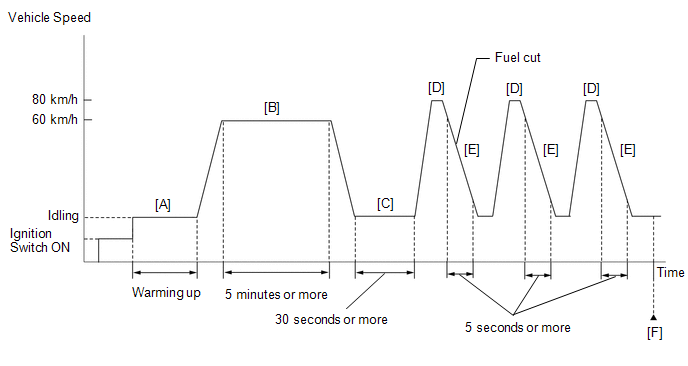

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON.
  7. Turn the GTS on.
  8. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
  9. Drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more [B].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

  10. Idle the engine for 30 seconds or more [C].
  11. With the shift lever in M or 2nd gear, accelerate the vehicle to 80 km/h (50 mph) or more [D].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

  12. Perform the fuel cut operation for 5 seconds or more, with the accelerator pedal fully released [E].
  13. Repeat steps [D] through [E] above 3 times in one driving cycle.
  14. Enter the following menus: Powertrain / Engine / Trouble Codes [F].
  15. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  16. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  17. Input the DTC P040000, P04019C or P04029B.
  18. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [D] through [F] again.
    • [A] to [F]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P040318.

Click here

CAUTION / NOTICE / HINT

HINT:

  • By using the Control the EGR Step Position Active Test, the operation of the EGR valve can be checked.
  • When the engine is idling steadily with the EGR valve fully closed, if the EGR valve is normal and it is opened using the Active Test, the Data List value changes as follows.

    Data List Item

    Change in Data List when Number of Steps is Increased Using Control the EGR Step Position Active Test

    Engine Speed

    Idle becomes rough

    Intake Manifold Absolute Pressure

    Pressure rises

  • Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P040000, P04019C, P04029B)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P040000, P04019C or P04029B is output

A

DTC P040000, P04019C or P04029B and other DTCs are output

B

HINT:

If any DTCs other than P040000, P04019C or P04029B are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

READ VALUE USING GTS (INTAKE MANIFOLD ABSOLUTE PRESSURE)

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display

Intake Manifold Absolute Pressure

(b) Read the value of Intake Manifold Absolute Pressure.

Standard:

GTS Display

Specified Condition

Intake Manifold Absolute Pressure

80 to 110 kPa (11.6 to 15.95 psi)

NG

REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR

OK

3.

PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

(a) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.

(b) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display

Control the EGR Step Position

Data List Display

Engine Speed

Intake Manifold Absolute Pressure

Coolant Temperature

(c) According to the display on the GTS, compare the values of Data List item Intake Manifold Absolute Pressure before and while performing the Active Test.

NOTICE:

  • Do not leave the EGR valve open for 10 seconds or more during the Active Test.
  • Be sure to return the EGR valve to step 0 when the Active Test is completed.
  • Do not open the EGR valve 30 steps or more during the Active Test.

Standard:

The value of Intake Manifold Absolute Pressure changes according to the EGR valve step set by the Active Test.

Data List

Control the EGR Step Position (Active Test)

Before Active Test

(Engine idling)

0 Steps

0 to 30 Steps

(Engine idling)

Intake Manifold Absolute Pressure

18 to 38 kPa (2.6 to 5.5 psi)

18 to 38 kPa (2.6 to 5.5 psi)

(EGR valve is fully closed)

Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed

HINT:

While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.

Result

Proceed to

Before performing the Active Test (while the engine is idling), the value of Intake Manifold Absolute Pressure is not between 18 to 38 kPa (2.6 to 5.5 psi).

A

When performing the Active Test to change the EGR valve step between 0 (EGR valve fully closed) and 30, the value of Intake Manifold Absolute Pressure changes less than 10 kPa (1.42 psi).

B

Other than above

C

B

GO TO STEP 6

C

GO TO STEP 12

A

4.

CHECK INTAKE SYSTEM

(a) Check the intake system for vacuum leaks.

Click here

OK:

No leaks from intake system.

HINT:

Perform "Inspection After Repair" after repairing or replacing the intake system.

Click here

NG

REPAIR OR REPLACE INTAKE SYSTEM

OK

5.

INSPECT EGR VALVE ASSEMBLY

(a) Remove the EGR valve assembly.

Click here

(b) Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.

HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click here

OK

REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR

NG

REPLACE EGR VALVE ASSEMBLY

6.

REPLACE EGR VALVE ASSEMBLY

Click here

HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click here

NEXT

7.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

8.

CHECK WHETHER DTC OUTPUT RECURS (DTC P040000, P04019C OR P04029B)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(c) Input the DTC: P040000, P04019C or P04029B.

(d) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

A

ABNORMAL

(DTC P040000, P04019C or P04029B is output)

B

A

END

B

9.

REPLACE EGR COOLER ASSEMBLY

Click here

HINT:

  • If any of the EGR system related pipes (EGR pipe, exhaust manifold, etc.) are cracked, damaged or clogged, replace them as necessary.
  • Perform "Inspection After Repair" after replacing the EGR system.

    Click here

NEXT

10.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

11.

CHECK WHETHER DTC OUTPUT RECURS (DTC P040000, P04019C OR P04029B)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(c) Input the DTC: P040000, P04019C or P04029B.

(d) Check the DTC judgment result.

GTS Display

Description

NORMAL

  • DTC judgment completed
  • System normal

ABNORMAL

  • DTC judgment completed
  • System abnormal

INCOMPLETE

  • DTC judgment not completed
  • Perform driving pattern after confirming DTC enabling conditions
NEXT

END

12.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

13.

CHECK WHETHER DTC OUTPUT RECURS (DTC P040000, P04019C OR P04029B)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(c) Input the DTC: P040000, P04019C or P04029B.

(d) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

A

ABNORMAL

(DTC P040000, P04019C or P04029B is output)

B

HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click here

A

END

B

REPLACE EGR VALVE ASSEMBLY

    READ NEXT:

     Exhaust Gas Recirculation "A" Circuit Current Below Threshold (P040318,P040319,P140018,P140019)

    DESCRIPTION Refer to DTC P040000. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note P040318 Exhaust Gas Recirculation "A" Circuit Curr

     Catalyst System Efficiency Below Threshold Bank 1 (P042000)

    MONITOR DESCRIPTION The ECM uses air fuel ratio sensors mounted in front of and behind the Three-Way Catalytic Converter (TWC) to monitor its efficiency. The first sensor, the air fuel ratio sensor

     Evaporative Emission System Leak Detection Reference Orifice Low Flow (P043E00,P043F00,P24007E,P24007F,P24187E)

    DTC SUMMARY DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note P043E00 Evaporative Emission System Leak Detection Reference Orifice Low Flow Ref

    SEE MORE:

     How To Proceed With Troubleshooting

    CAUTION / NOTICE / HINT PRECAUTIONS WHEN TROUBLESHOOTING NOTICE: Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output. If the CAN commu

     Dtc Check / Clear

    DTC CHECK / CLEAR CHECK FOR DTCS (a) Enter the following menus. Powertrain > HV Battery > Trouble Codes (b) Check the DTCs and freeze frame data, and then write them down. (c) Check the details of the DTCs. Display Item Description Test Failed Shows the malfunction ju

    © 2020-2024 Copyright www.tcorollacross.com
