Toyota Corolla Cross: Coolant (for Engine)

Components

COMPONENTS

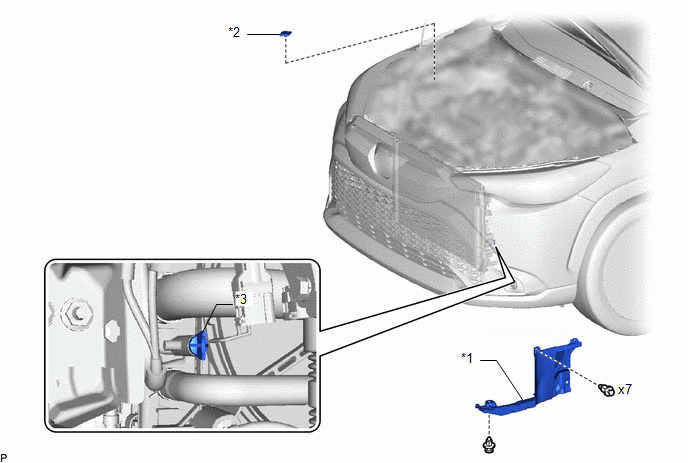

ILLUSTRATION

*1

REAR ENGINE UNDER COVER LH

*2

RADIATOR CAP SUB-ASSEMBLY

*3

RADIATOR DRAIN COCK PLUG

-

-
