Toyota Corolla Cross (2022-2026) Service Manual / Drivetrain / K120 (cvt) / Front Differential Oil Seal / Components

COMPONENTS

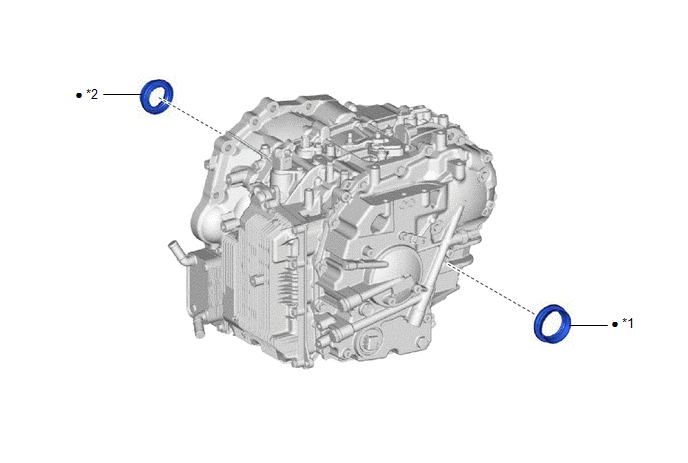

ILLUSTRATION

*1

FRONT DRIVE SHAFT OIL SEAL LH

*2

FRONT DRIVE SHAFT OIL SEAL RH

●

Non-reusable part

-

-
