Toyota Corolla Cross: Components
COMPONENTS

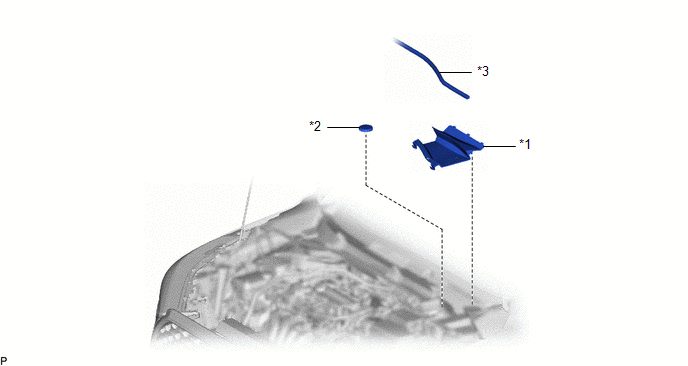

ILLUSTRATION
|
*1
|
CENTER COWL TOP VENTILATOR LOUVER
|
*2
|
BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
|
|
*3
|
HOOD TO COWL TOP SEAL
|
-
|
-
|

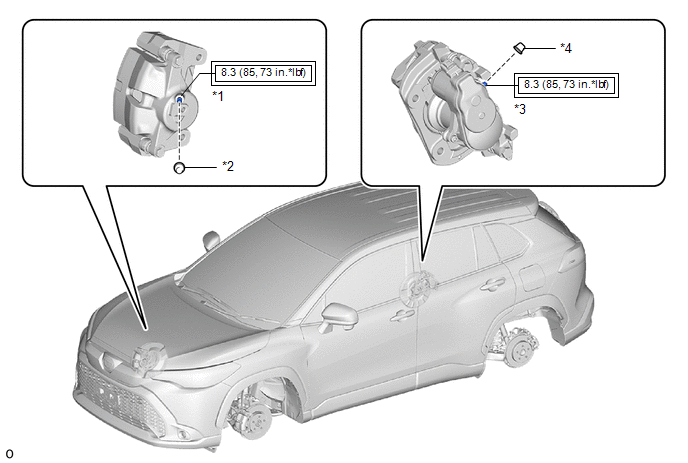

ILLUSTRATION
|
*1
|
FRONT DISC BRAKE BLEEDER PLUG
|
*2
|
FRONT DISC BRAKE BLEEDER PLUG CAP
|
|
*3
|
REAR DISC BRAKE BLEEDER PLUG
|
*4
|
REAR DISC BRAKE BLEEDER PLUG CAP
|
.png) |
Tightening torque for "Major areas involving basic vehicle
performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)
|
-
|
-
|
