Toyota Corolla Cross (2022-2026) Service Manual / General / Maintenance / M20a-fks Coolant / Components

COMPONENTS

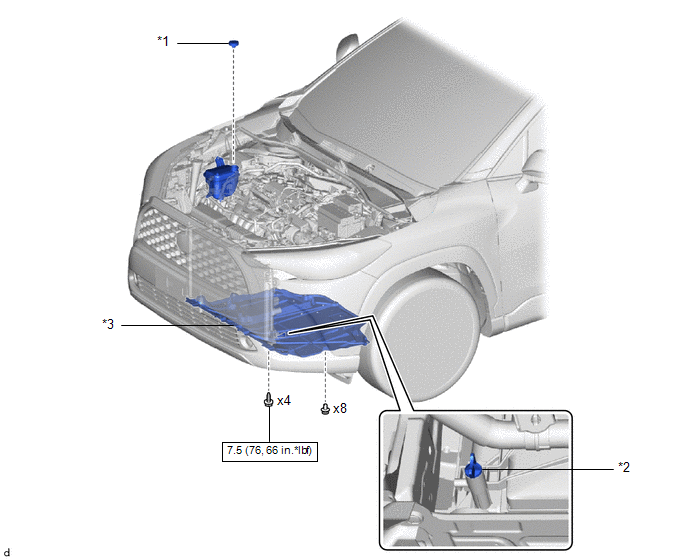

ILLUSTRATION

*1

RESERVE TANK CAP

*2

RADIATOR DRAIN COCK PLUG

*3

NO. 1 ENGINE UNDER COVER ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
