Toyota Corolla Cross: Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 1 (P001100)

DESCRIPTION

Refer to DTC P001001.

Click here

MONITOR DESCRIPTION

This DTC is output when a valve timing stuck condition is detected. With the engine speed at 4000 rpm or less in the advance angle position, if the valve timing does not vary, and there is a large difference in the target and actual valve timing, it is determined that a malfunction has occurred. When this malfunction is detected, the ECM will illuminate the MIL and store this DTC.

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

MONITOR RESULT

Refer to detailed information in Checking Monitor Status.

Click here

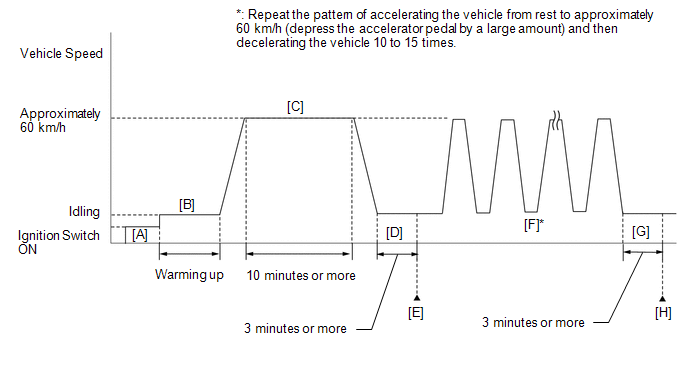

CONFIRMATION DRIVING PATTERN

HINT:

• After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

  Click here

• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

  Click here

1. Connect the GTS to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the GTS on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON [A].
7. Turn the GTS on.
8. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
9. Drive the vehicle at approximately 60 km/h (37 mph) for 10 minutes or more [C].

   CAUTION:

   When performing the confirmation driving pattern, obey all speed limits and traffic laws.

10. Idle the engine for 3 minutes or more [D].
11. Enter the following menus: Powertrain / Engine / Trouble Codes [E].
12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
14. Input the DTC: P001100.
15. Check the DTC judgment result.

    GTS Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [F] through [H].
    • [A] to [E]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
16. Repeat the pattern of accelerating the vehicle from rest to approximately 60 km/h (37 mph) and then decelerating the vehicle 10 to 15 times [F].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    Depress the accelerator pedal by a large amount.

17. Idle the engine for 3 minutes or more [G].
18. Enter the following menus: Powertrain / Engine / Trouble Codes [H].
19. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
20. Check the DTC judgment result again.

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • [A] to [H]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

CAUTION / NOTICE / HINT

HINT:

• The GTS only:

  By using the Control the VVT-iE Opening Angle Bank 1 Active Test, it can be determined if the VVT-iE system is malfunctioning.

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs.
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.
  7. Turn the GTS on.
  8. Enter the following menus: Powertrain / Engine / Active Test / Control the VVT-iE Opening Angle Bank 1 / Data List / Intake VVT Change Angle Bank 1 and Intake VVT Target Angle Bank 1.
  9. Read the Data List while performing the Active Test with the engine idling. OK:

     Active Test Movement Order	Difference between "Intake VVT Change Angle Bank 1" and "Intake VVT Target Angle Bank 1"
     0 deg → 10 deg → 20 deg → 40 deg → 0 deg → 10 deg → END	Within 4 DegFR

• Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

(a) Read the DTCs.

HINT:

If any DTCs other than P001100 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

Click here

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

Click here

NEXT

(a) Clear the DTCs.

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

(a) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(b) Read the DTCs.

A

END

B

REPLACE ECM
