Toyota Corolla Cross: Air Conditioning Panel

Removal

REMOVAL

CAUTION / NOTICE / HINT

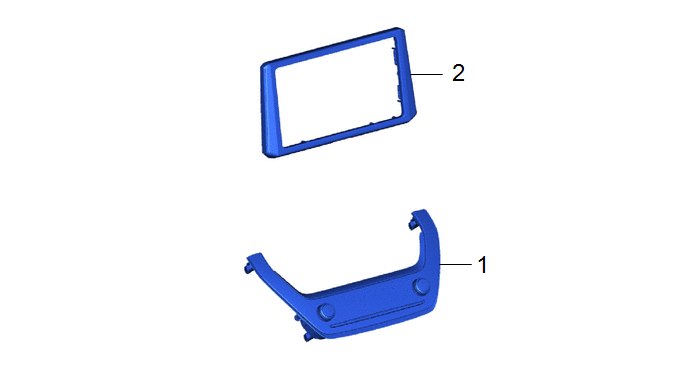

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

55405B

-

-

-

2

AIR CONDITIONING CONTROL ASSEMBLY

55900

-

-

PROCEDURE

1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

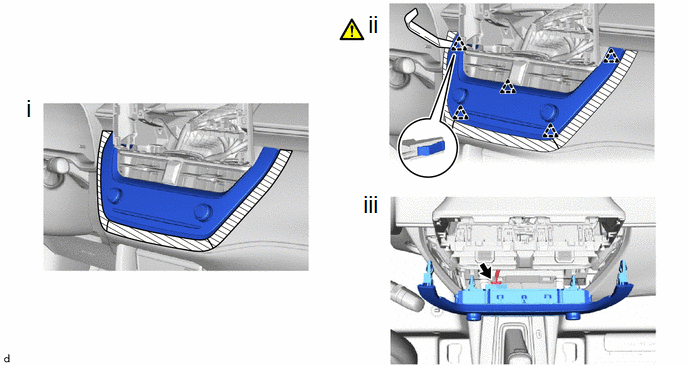

(1) Apply protective tape to the area shown in the illustration.

(2) Using a moulding remover A, disengage the clips to separate the air conditioning control assembly.

(3) Disconnect the connector to remove the air conditioning control assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT AIR CONDITIONING CONTROL ASSEMBLY

(a) Check the illumination.

(1) Apply auxiliary battery voltage to the air conditioning control assembly and check that the illumination.

OK:

Tester Connection

Condition

Specified Condition

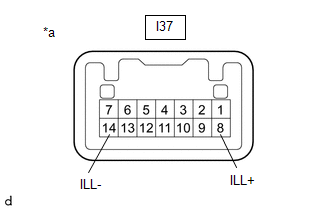

I37-8 (ILL+) - I37-14 (ILL-)

I37-8 (ILL+) - Auxiliary battery positive (+)

I37-14 (ILL-) - Auxiliary battery negative (-)

Air conditioning control assembly illumination illuminates

If the result is not as specified, replace the air conditioning control assembly.

*a

Component without harness connected

(Air Conditioning Control Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

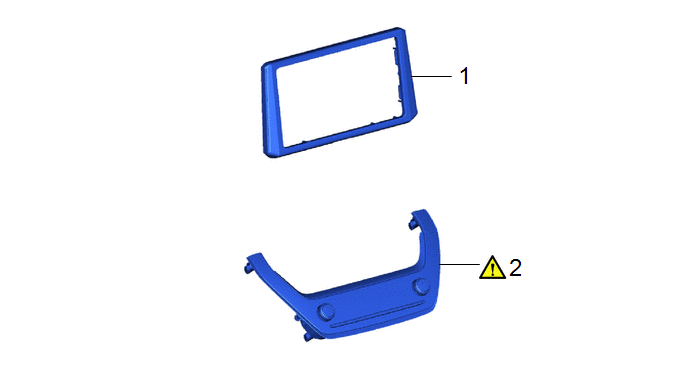

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

AIR CONDITIONING CONTROL ASSEMBLY

55900

-

-

-

2

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

55405B

-

-

-

PROCEDURE

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
