Toyota Corolla Cross: Terminals Of Ecu

TERMINALS OF ECU

*a

Hybrid Vehicle Control ECU

-

-

HINT:

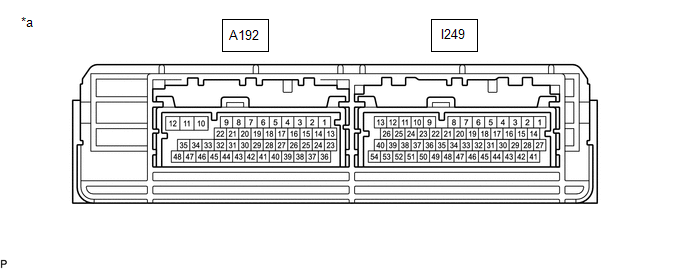

The standard normal voltage between each pair of hybrid vehicle control ECU terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the hybrid vehicle control ECU terminal locations.

Hybrid Vehicle Control ECU

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

A192-1 (HMCL) - I249-1 (E1)

CAN communication signal

Ignition switch ON

Pulse generation

(Waveform 1)

A192-2 (HMCH) - I249-1 (E1)

CAN communication signal

Ignition switch ON

Pulse generation

(Waveform 1)

A192-16 (LIN3) - I249-1 (E1)

LIN communication signal

Ignition switch ON (READY)

Pulse generation

I249-10 (MREL) - I249-1 (E1)

IGCT-MAIN NO. 1 relay

Ignition switch ON

11 to 14 V

(a) Oscilloscope waveforms

HINT:

Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.

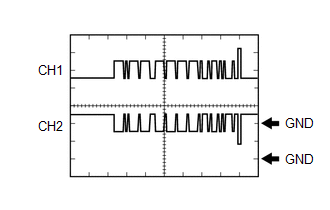

(1) Waveform 1 (CAN communication signal)

Item

Content

Terminal

CH1: A192-2 (HMCH) - I249-1 (E1)

CH2: A192-1 (HMCL) - I249-1 (E1)

Equipment Setting

1 V/DIV., 50 μs./DIV.

Condition

Ignition switch ON

HINT:

The waveform will vary depending on the content of the digital communication (digital signal).
