Toyota Corolla Cross: System Diagram

Toyota Corolla Cross (2022-2024) Service Manual / Brake / Brake Control / Dynamic Control Systems / Electronically Controlled Brake System (for Hev Model) / System Diagram

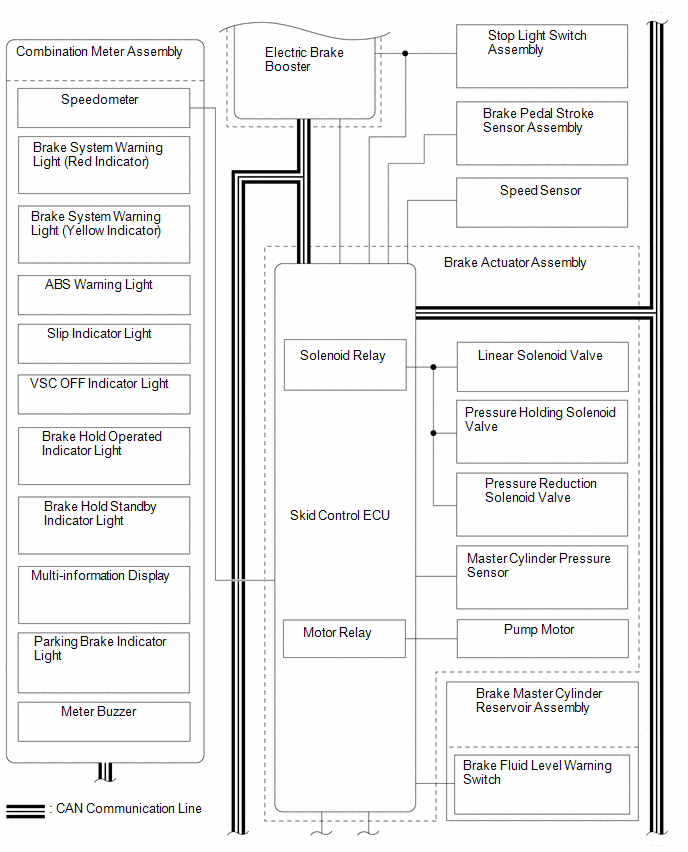

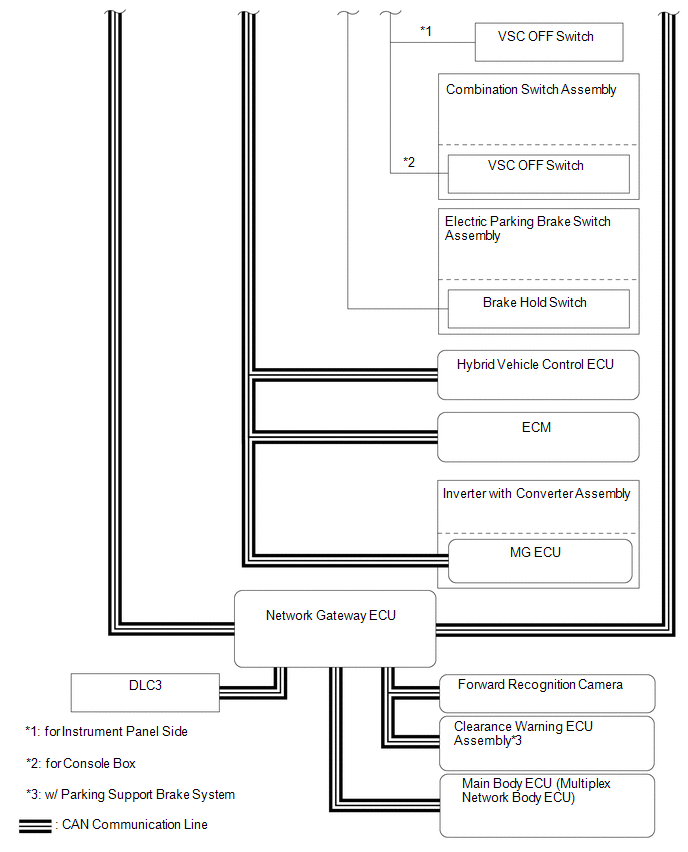

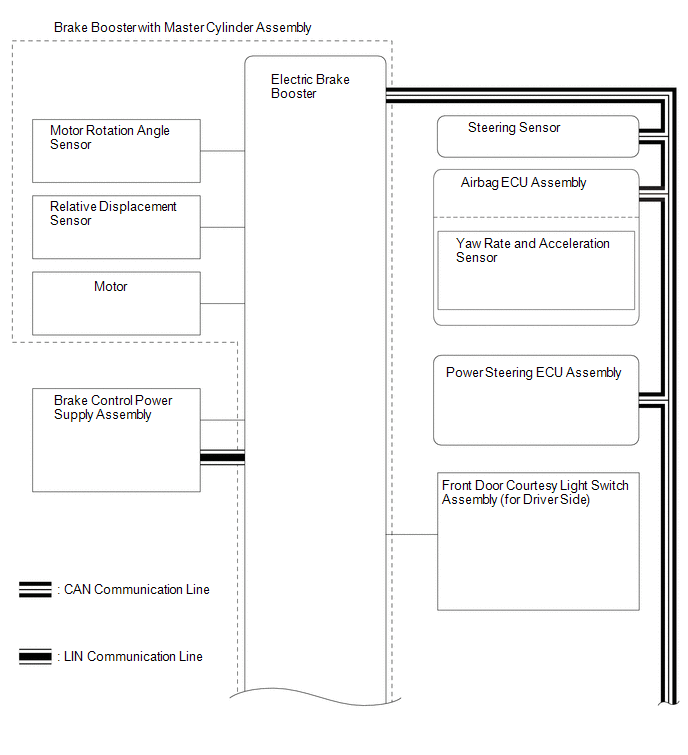

SYSTEM DIAGRAM
