Toyota Corolla Cross: Sub Radiator

Removal

REMOVAL

CAUTION / NOTICE / HINT

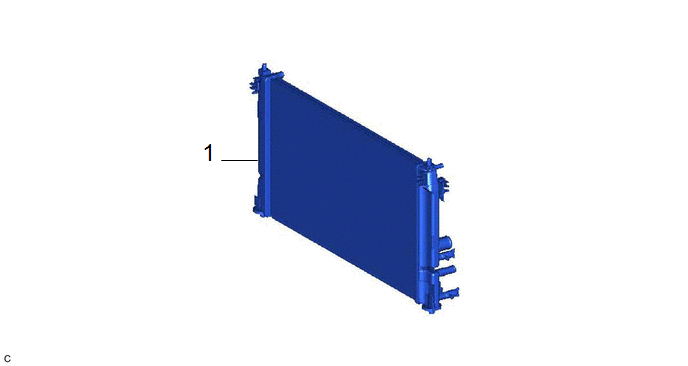

COMPONENTS(REMOVAL)

Procedure

Part Name Code

1

RADIATOR ASSEMBLY

16400

-

-

-

PROCEDURE

1. REMOVE RADIATOR ASSEMBLY

HINT:

The radiator (for inverter coolant) is part of the radiator (for Engine). If the radiator (for inverter coolant) needs to be replaced, replace the radiator assembly.

(a) Remove the radiator assembly.

Click here

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS(INSTALLATION)

Procedure

Part Name Code

1

RADIATOR ASSEMBLY

16400

-

-

-

PROCEDURE

1. INSTALL RADIATOR ASSEMBLY

HINT:

The radiator (for inverter coolant) is part of the radiator (for Engine). If the radiator (for inverter coolant) needs to be replaced, replace the radiator assembly.

(a) Install the radiator assembly.

Click here
