Toyota Corolla Cross: Security Horn Assembly

Removal

REMOVAL

CAUTION / NOTICE / HINT

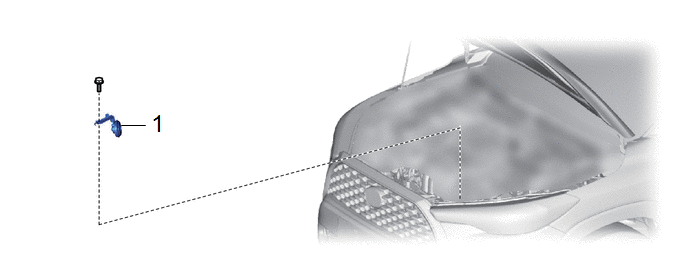

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

SECURITY HORN ASSEMBLY

86510A

-

-

-

PROCEDURE

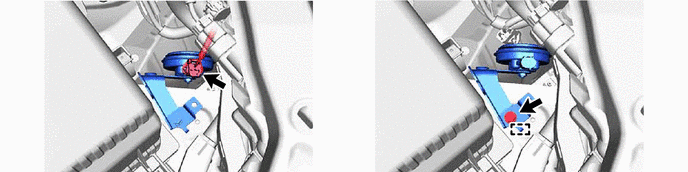

1. REMOVE SECURITY HORN ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT SECURITY HORN ASSEMBLY

(a) Check the operation.

(1) Apply battery voltage and check the operation of the security horn assembly.

OK:

Auxiliary Battery Connection

Specified Condition

Auxiliary battery positive (+) → Terminal 1

Auxiliary battery negative (-) → Terminal 2

Security horn assembly sounds

If the result is not as specified, replace the security horn assembly.

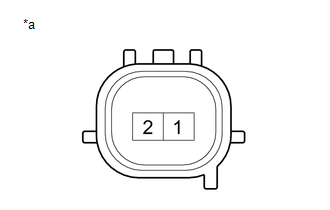

*a

Component without harness connected

(Security Horn Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

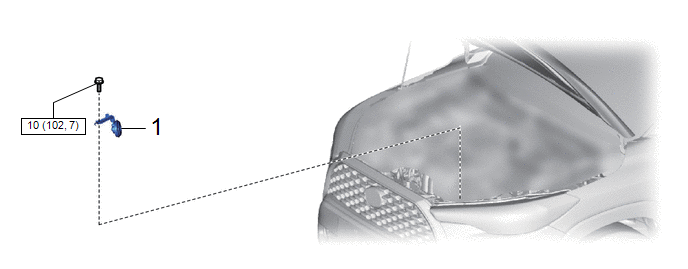

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

SECURITY HORN ASSEMBLY

86510A

-

-

-

PROCEDURE

1. INSTALL SECURITY HORN ASSEMBLY

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}
