Toyota Corolla Cross: Room Temperature Sensor Circuit Short to Battery or Open (B141A15)

DESCRIPTION

The cooler thermistor (room temperature sensor) is installed in the instrument panel to detect the cabin temperature, which is used to control the air conditioning system. The resistance of the cooler thermistor (room temperature sensor) changes in accordance with the cabin temperature. As the temperature decreases, the resistance increases. As the temperature increases, the resistance decreases.

The air conditioning amplifier assembly applies voltage (5 V) to the cooler thermistor (room temperature sensor) and reads voltage changes due to changes in the resistance of the cooler thermistor (room temperature sensor).

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Memory

B141A15

Room Temperature Sensor Circuit Short to Battery or Open

Diagnosis Condition:

  • Ignition switch ON

Malfunction Status:

  • Open or short in room temperature sensor circuit

Detection Time:

  • Continuously for 4 seconds or more
  • Cooler thermistor (room temperature sensor)
  • Harness or connector
  • Air conditioning amplifier assembly

Memorized

DTC Detection Condition Combination Table


Vehicle Condition

Pattern 1

Pattern 2

Diagnosis Condition

Ignition switch ON

Malfunction

Open in room temperature sensor circuit

-

Short in room temperature sensor circuit

-

Detection Time

Continuously for 4 seconds or more

Continuously for 4 seconds or more

Trip Count

1 trip

1 trip

HINT:

If the conditions of either of these patterns are detected, a DTC will be stored

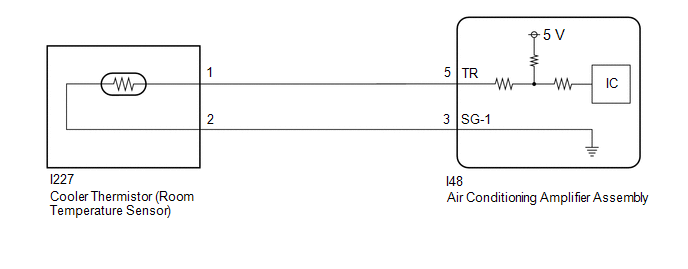

WIRING DIAGRAM

PROCEDURE

1.

READ VALUE USING GTS

(a) Read the Data List according to the display on the GTS.

Body Electrical > Air Conditioner > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Room Temperature Sensor

Cooler thermistor (room temperature sensor)

Min.: -327.68°C (-557.82°F)

Max.: 327.67°C (621.81°F)

Actual cabin temperature displayed

Cooler thermistor (room temperature sensor) circuit malfunction

Body Electrical > Air Conditioner > Data List

Tester Display

Room Temperature Sensor

OK:

The display is as specified in the normal condition column.

OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

NG

2.

INSPECT COOLER THERMISTOR (ROOM TEMPERATURE SENSOR)

Click here

NG

REPLACE COOLER THERMISTOR (ROOM TEMPERATURE SENSOR)

OK

3.

CHECK HARNESS AND CONNECTOR (COOLER THERMISTOR (ROOM TEMPERATURE SENSOR) - AIR CONDITIONING AMPLIFIER ASSEMBLY)

(a) Disconnect the I48 air conditioning amplifier assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I227-1 - I48-5 (TR)

Always

Below 1 Ω

I227-2 - I48-3 (SG-1)

Always

Below 1 Ω

I227-1 or I48-5 (TR) - Other terminals and body ground

Always

10 kΩ or higher

I227-2 or I48-3 (SG-1) - Other terminals and body ground

Always

10 kΩ or higher

OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
