Toyota Corolla Cross: Revolution Sensor (nc1 Sensor)

Toyota Corolla Cross (2022-2026) Service Manual / Drivetrain / K120 (cvt) / Revolution Sensor (nc1 Sensor)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

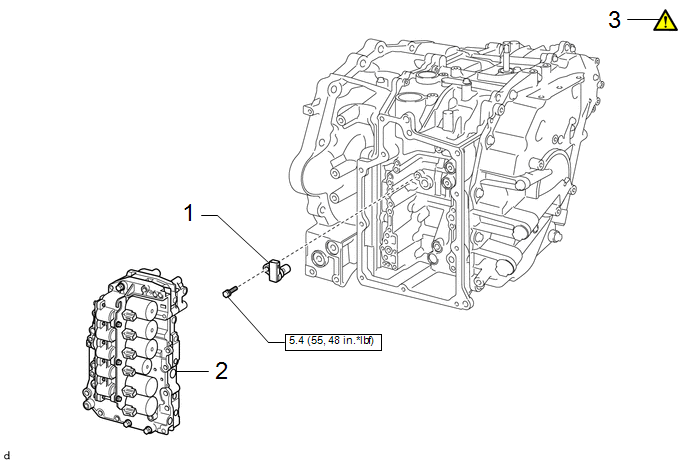

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMISSION REVOLUTION SENSOR (NC1)

89413S

-

-

-

2

TRANSMISSION VALVE BODY ASSEMBLY

35410J

-

-

-

3

CHECK DATA LIST

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL TRANSMISSION REVOLUTION SENSOR (NC1)

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

Click here

3. CHECK DATA LIST

Click here
