Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

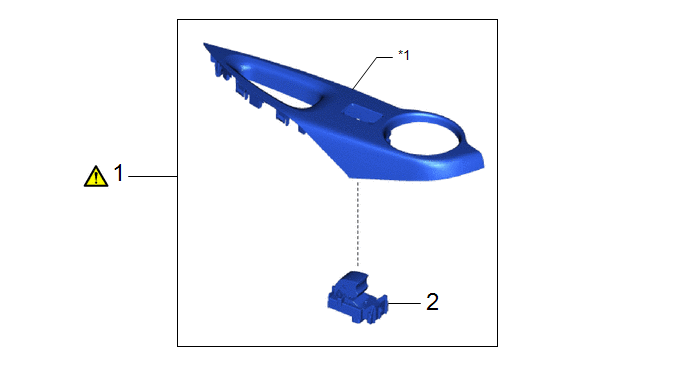

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

-

-

-

2

REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

84810D

-

-

-

*1

REAR DOOR UPPER ARMREST BASE PANEL

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click here

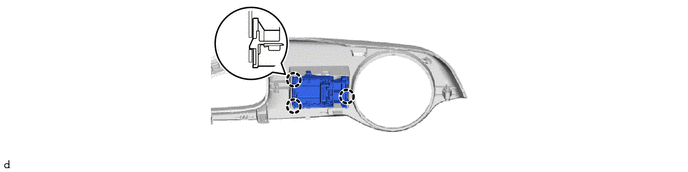

2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
