Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

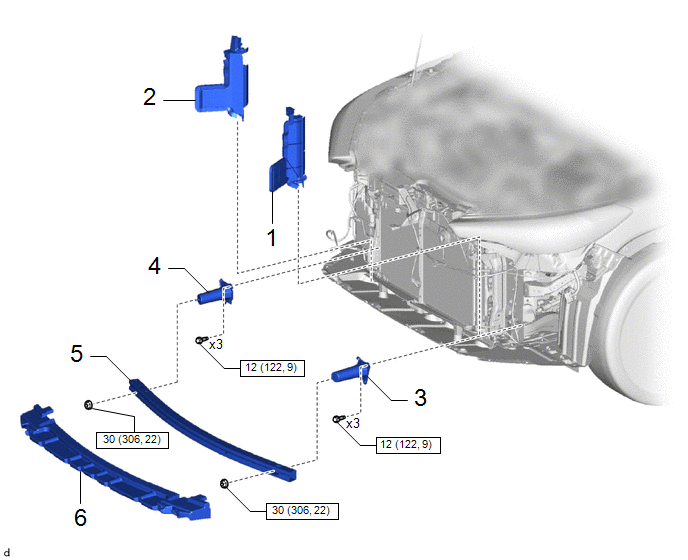

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

NO. 1 RADIATOR AIR GUIDE LH

16595D

-

-

-

2

NO. 1 RADIATOR AIR GUIDE RH

16593D

-

-

-

3

FRONT BUMPER BAR REINFORCEMENT LH

52134C

-

-

-

4

FRONT BUMPER BAR REINFORCEMENT RH

52133C

-

-

-

5

NO. 2 FRONT BUMPER REINFORCEMENT

52132A

-

-

-

6

FRONT BUMPER LOWER ABSORBER

52618

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

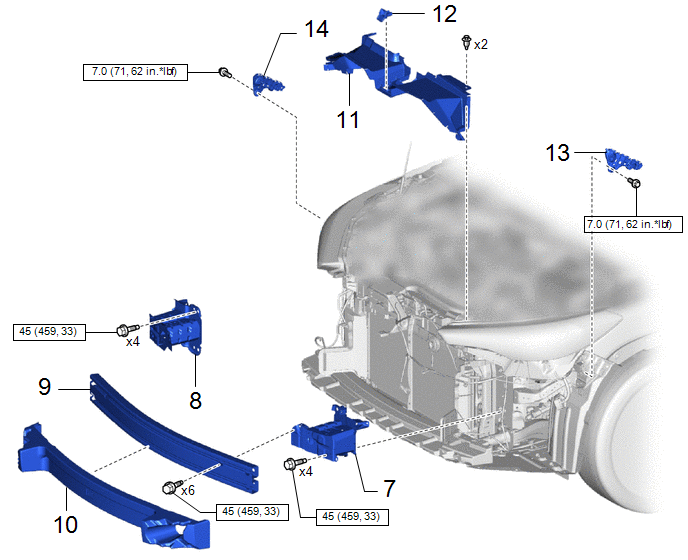

Procedure

Part Name Code

7

FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

57014A

-

-

-

8

FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

57013C

-

-

-

9

FRONT BUMPER REINFORCEMENT

52131A

-

-

-

10

FRONT BUMPER ENERGY ABSORBER

52611

-

-

-

11

NO. 1 RADIATOR TO SUPPORT SEAL

16561C

-

-

-

12

LOWER NO. 2 FRONT BUMPER RETAINER

52527C

-

-

-

13

FRONT BUMPER SIDE RETAINER LH

52536

-

-

-

14

FRONT BUMPER SIDE RETAINER RH

52535

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

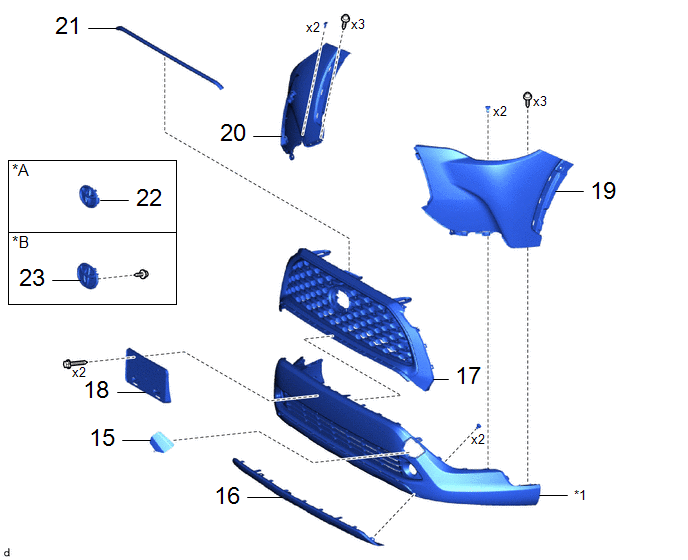

Procedure

Part Name Code

15

LOWER SIDE RADIATOR GRILLE LH

53128E

-

-

-

16

FRONT BUMPER BAR

52111E

-

-

-

17

RADIATOR GRILLE SUB-ASSEMBLY

-

-

-

-

18

FRONT BUMPER EXTENSION MOUNTING BRACKET

52114A

-

-

-

19

FRONT BUMPER EXTENSION LH

52113D

-

-

-

20

FRONT BUMPER EXTENSION RH

52112D

-

-

-

21

HOOD TO FRONT END PANEL SEAL

53395J

-

-

-

22

RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

75311

-

-

-

23

RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

75311

-

-

-

*A

w/o Pre-collision System

*B

w/ Pre-collision System

*1

FRONT BUMPER LOWER COVER

-

-

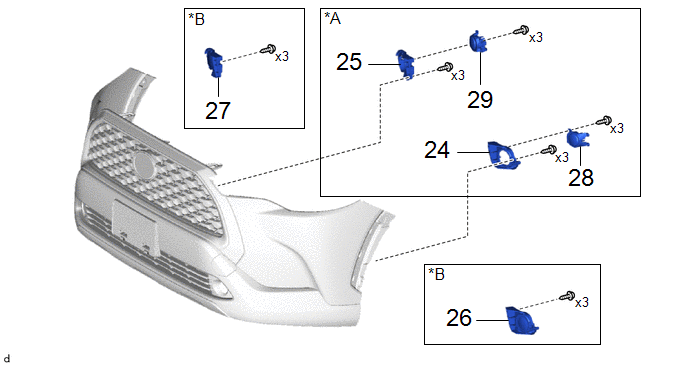

Procedure

Part Name Code

24

FOG LIGHT COVER LH

81482C

-

-

-

25

FOG LIGHT COVER RH

81481E

-

-

-

26

FOG LIGHT COVER LH

81482C

-

-

-

27

FOG LIGHT COVER RH

81481E

-

-

-

28

FOG LIGHT ASSEMBLY LH

81220

-

-

-

29

FOG LIGHT ASSEMBLY RH

81210A

-

-

-

*A

w/ Fog Light

*B

w/o Fog Light

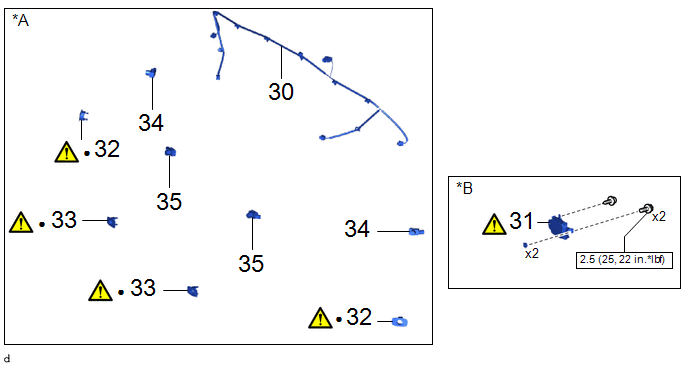

Procedure

Part Name Code

30

NO. 5 ENGINE ROOM WIRE

82119C

-

-

-

31

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

88211B

-

-

32

FRONT CORNER ULTRASONIC SENSOR RETAINER

89C48D

-

-

33

FRONT CENTER ULTRASONIC SENSOR RETAINER

89C48E

-

-

34

FRONT CORNER ULTRASONIC SENSOR

89341K

-

-

-

35

FRONT CENTER ULTRASONIC SENSOR

89341L

-

-

-

*A

w/ TOYOTA Parking Assist-sensor System

*B

w/ Pre-collision System

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL NO. 1 RADIATOR AIR GUIDE LH

2. INSTALL NO. 1 RADIATOR AIR GUIDE RH

3. INSTALL FRONT BUMPER BAR REINFORCEMENT LH

Torque:

12 N·m {122 kgf·cm, 9 ft·lbf}

4. INSTALL FRONT BUMPER BAR REINFORCEMENT RH

5. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT

Torque:

30 N·m {306 kgf·cm, 22 ft·lbf}

6. INSTALL FRONT BUMPER LOWER ABSORBER

7. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

Torque:

45 N·m {459 kgf·cm, 33 ft·lbf}

8. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

9. INSTALL FRONT BUMPER REINFORCEMENT

Torque:

45 N·m {459 kgf·cm, 33 ft·lbf}

10. INSTALL FRONT BUMPER ENERGY ABSORBER

11. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL

12. INSTALL LOWER NO. 2 FRONT BUMPER RETAINER

13. INSTALL FRONT BUMPER SIDE RETAINER LH

Torque:

7.0 N·m {71 kgf·cm, 62 in·lbf}

14. INSTALL FRONT BUMPER SIDE RETAINER RH

15. INSTALL LOWER SIDE RADIATOR GRILLE LH

16. INSTALL FRONT BUMPER BAR

17. INSTALL RADIATOR GRILLE SUB-ASSEMBLY

18. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET

19. INSTALL FRONT BUMPER EXTENSION LH

20. INSTALL FRONT BUMPER EXTENSION RH

21. INSTALL HOOD TO FRONT END PANEL SEAL

22. INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/o Pre-collision System)

23. INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/ Pre-collision System)

24. INSTALL FOG LIGHT COVER LH (w/ Fog Light)

25. INSTALL FOG LIGHT COVER RH (w/ Fog Light)

26. INSTALL FOG LIGHT COVER LH (w/o Fog Light)

27. INSTALL FOG LIGHT COVER RH (w/o Fog Light)

28. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)

29. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

30. INSTALL NO. 5 ENGINE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)

31. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

NOTICE:

If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

Nut

Bolt

Screw

-

-

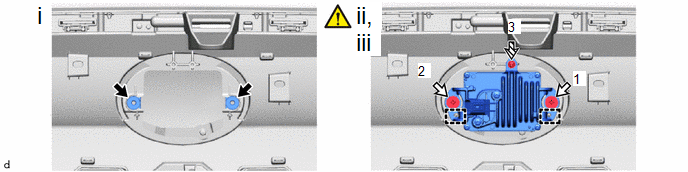

(1) Install the 2 nuts.

(2) Engage the guides to temporarily install the millimeter wave radar sensor assembly.

(3) Install the millimeter wave radar sensor assembly with the 2 bolts and screw.

Torque:

Bolt :

2.5 N·m {25 kgf·cm, 22 in·lbf}

HINT:

Tighten the bolts and screw in the order shown in the illustration.

32. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

33. INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

34. INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

35. INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)
