Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

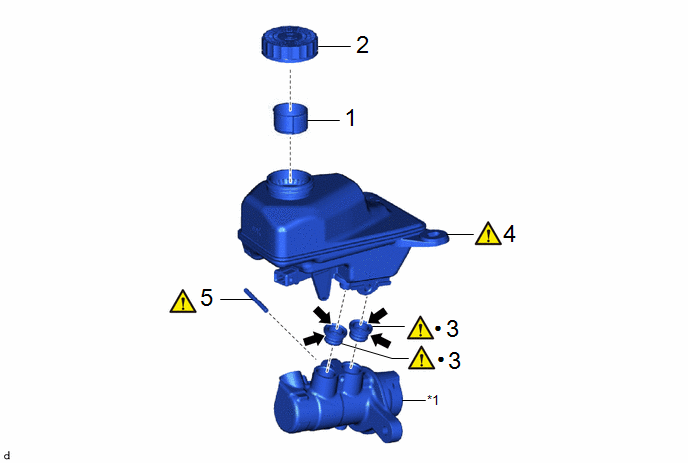

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

BRAKE MASTER CYLINDER RESERVOIR STRAINER

47299

-

-

-

2

BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

47230

-

-

-

3

MASTER CYLINDER RESERVOIR GROMMET

47255

-

-

4

BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

47220D

-

-

5

BRAKE MASTER CYLINDER STRAIGHT PIN

47210U

-

-

*1

BRAKE MASTER CYLINDER BODY

-

-

Non-reusable part

Lithium soap base glycol grease

PROCEDURE

1. INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER

2. INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

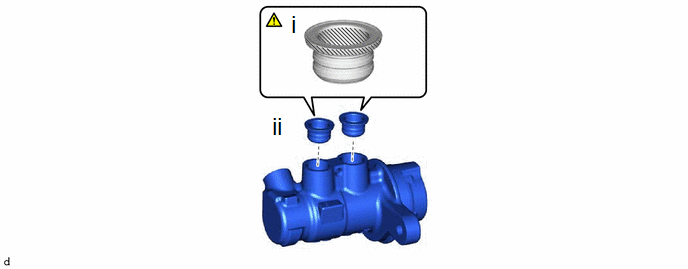

3. INSTALL MASTER CYLINDER RESERVOIR GROMMET

Lithium Soap Base Glycol Grease

-

-

(1) Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new master cylinder reservoir grommets.

(2) Install the 2 master cylinder reservoir grommets to the brake master cylinder body.

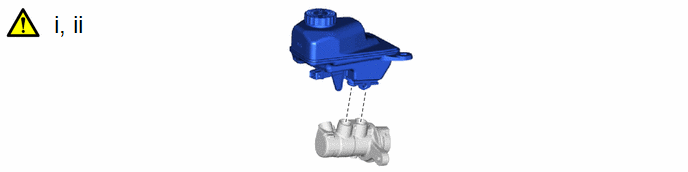

4. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

(1) Secure the brake master cylinder body in a vise.

NOTICE:

Place aluminum plates on the vise to prevent damage to the brake master cylinder body.

(2) Install the brake master cylinder reservoir assembly to the brake master cylinder body.

NOTICE:

Do not drop the brake master cylinder reservoir assembly.

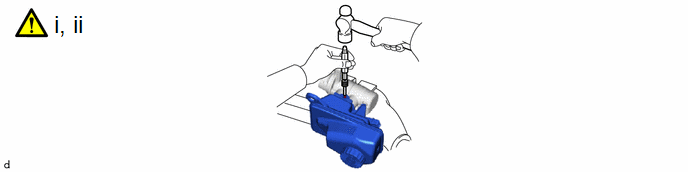

5. INSTALL BRAKE MASTER CYLINDER STRAIGHT PIN

(1) Using a 5 mm pin punch and a hammer, tap in the brake master cylinder straight pin to secure the brake master cylinder reservoir assembly.

(2) Remove the brake master cylinder sub-assembly from the vise.
