Toyota Corolla Cross: Pb10 Hybrid Transaxle Fluid

Components

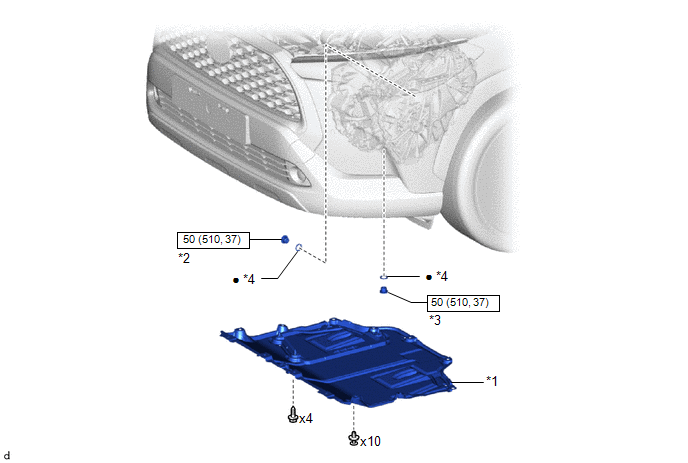

COMPONENTS

ILLUSTRATION

*1

NO. 1 ENGINE UNDER COVER ASSEMBLY

*2

FILLER PLUG

*3

DRAIN PLUG

*4

GASKET

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Replacement

REPLACEMENT

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. REPLACE HYBRID TRANSAXLE FLUID

(a) Lift the vehicle. [#1]

NOTICE:

Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure that the tilt angle from the front to rear of the vehicle is within +/- 1°).

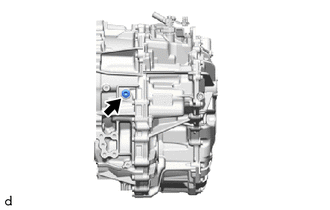

(b) Remove the filler plug and gasket from the hybrid vehicle transaxle assembly. [#2]

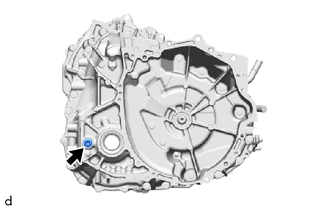

(c) Remove the drain plug and gasket from the hybrid vehicle transaxle assembly and drain the hybrid transaxle fluid. [#3]

(d) Temporarily install the drain plug and gasket to the hybrid vehicle transaxle assembly. [#4]

HINT:

Reuse the old gasket as the drain plug will be removed again.

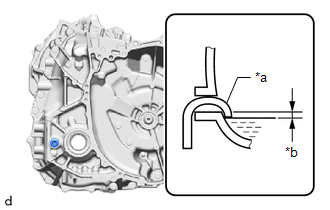

(e) Add hybrid transaxle fluid until the hybrid transaxle fluid level is between 0 to 10 mm (0 to 0.394 in.) from the bottom lip of the filler plug opening. [#5]

NOTICE:

  • Use Toyota Genuine e-Transaxle Fluid TE.

    Using transmission fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the transmission of your vehicle.

  • Be sure to fully insert the filler nozzle into the filler plug opening.
  • Be sure to add hybrid transaxle fluid slowly. If hybrid transaxle fluid is added quickly, the hybrid transaxle fluid may hit internal parts and bounce back, resulting in hybrid transaxle fluid coming out of the filler plug opening.
  • Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
  • An insufficient or excessive amount of hybrid transaxle fluid may damage the hybrid vehicle transaxle assembly.

*a

Filler Nozzle

*b

0 to 10 mm (0 to 0.394 in.)

(f) Temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly. [#6]

HINT:

Reuse the old gasket as the filler plug will be removed again.

(g) Lower the vehicle. [#7]

(h) Put the engine in maintenance mode. [#8]

Click here

(i) Idle the engine for 30 seconds with the ignition switch ON (READY). [#9]

(j) Turn the ignition switch off. [#10]

(k) Repeat steps [#1] to [#10].

(l) Repeat steps [#1] to [#3].

(m) Install the drain plug and a new gasket to the hybrid vehicle transaxle assembly.

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}

(n) Temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly.

HINT:

Reuse the old gasket as the filler plug will be removed again.

3. ADD HYBRID TRANSAXLE FLUID

Click here

4. INSPECT HYBRID TRANSAXLE FLUID

Click here

5. INSPECT FOR HYBRID TRANSAXLE FLUID LEAK

6. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here
