Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Interior / Door Lock / Wireless Door Lock Control System (w/ Smart Key System) / Parts Location

PARTS LOCATION

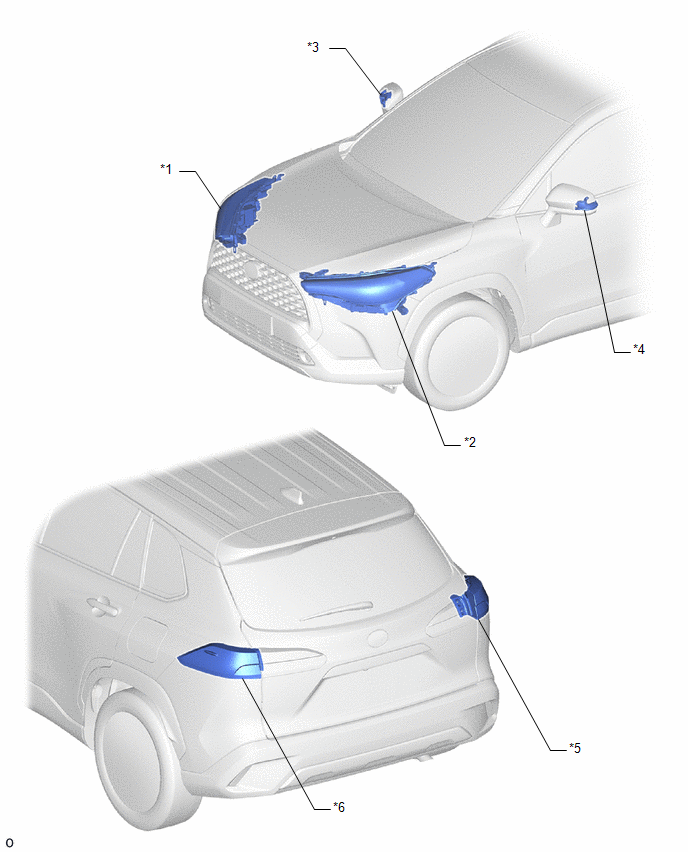

ILLUSTRATION

*1

HEADLIGHT ASSEMBLY RH

*2

HEADLIGHT ASSEMBLY LH

*3

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*4

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*5

REAR COMBINATION LIGHT ASSEMBLY RH

- TURN SIGNAL LIGHT

*6

REAR COMBINATION LIGHT ASSEMBLY LH

- TURN SIGNAL LIGHT

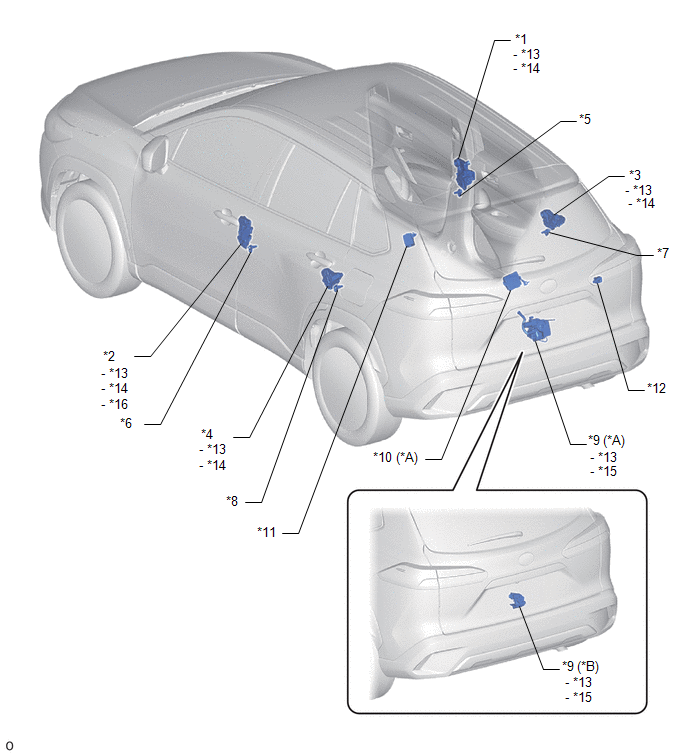

ILLUSTRATION

*A

w/ Power Back Door System

*B

w/o Power Back Door System

*1

FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH

*2

FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

*3

REAR DOOR LOCK WITH MOTOR ASSEMBLY RH

*4

REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

*5

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

*6

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*7

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

*8

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*9

BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

*10

MULTIPLEX NETWORK DOOR ECU

*11

DOOR CONTROL RECEIVER

*12

WIRELESS DOOR LOCK BUZZER

*13

DOOR LOCK MOTOR

*14

DOOR UNLOCK DETECTION SWITCH

*15

BACK DOOR COURTESY SWITCH

*16

DOOR KEY LOCK AND UNLOCK SWITCH

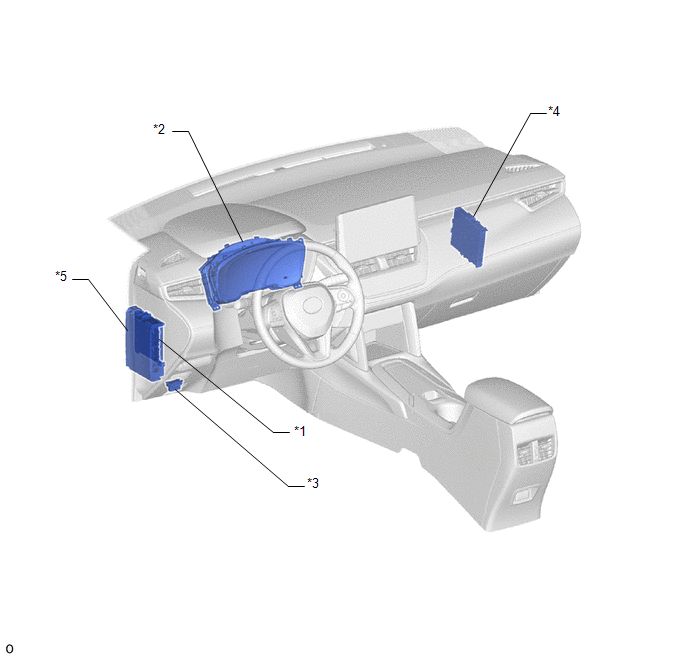

ILLUSTRATION

*1

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*2

COMBINATION METER ASSEMBLY

*3

DLC3

*4

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

*5

POWER DISTRIBUTION BOX ASSEMBLY

-

-
