Toyota Corolla Cross: System Diagram

SYSTEM DIAGRAM

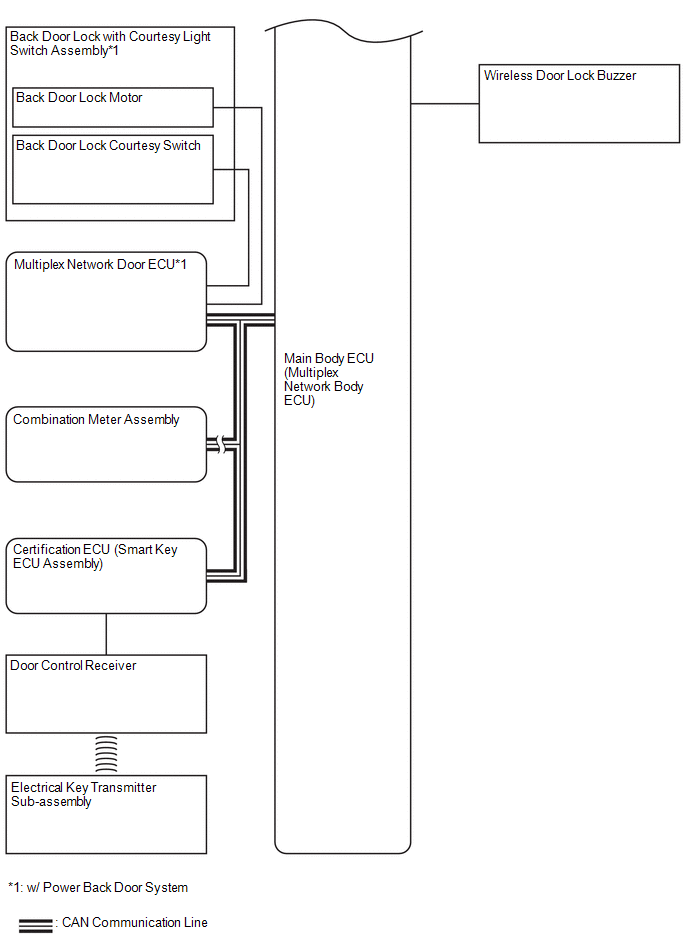

WIRELESS DOOR LOCK CONTROL SYSTEM

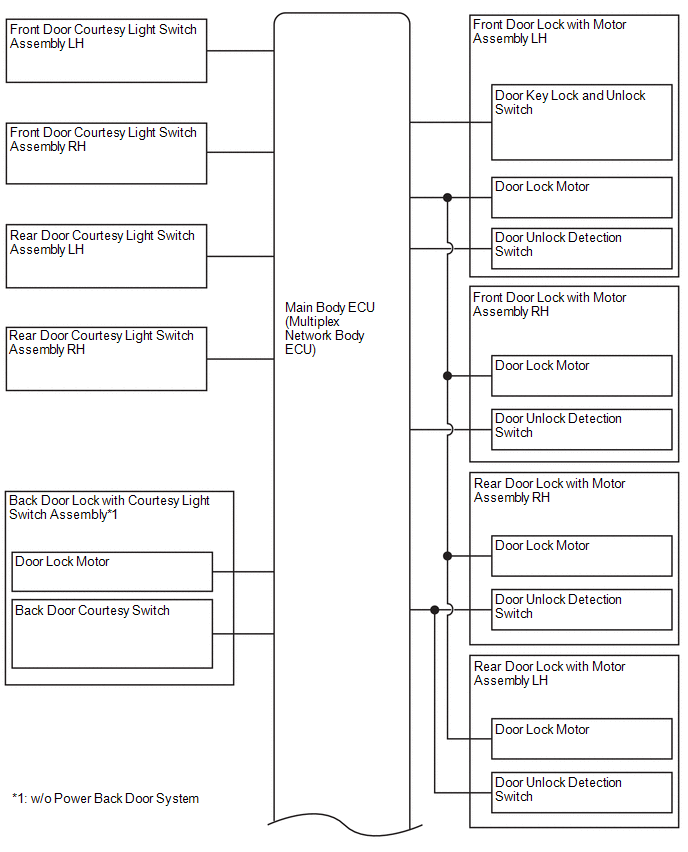

POWER DOOR LOCK CONTROL SYSTEM
