PARTS LOCATION

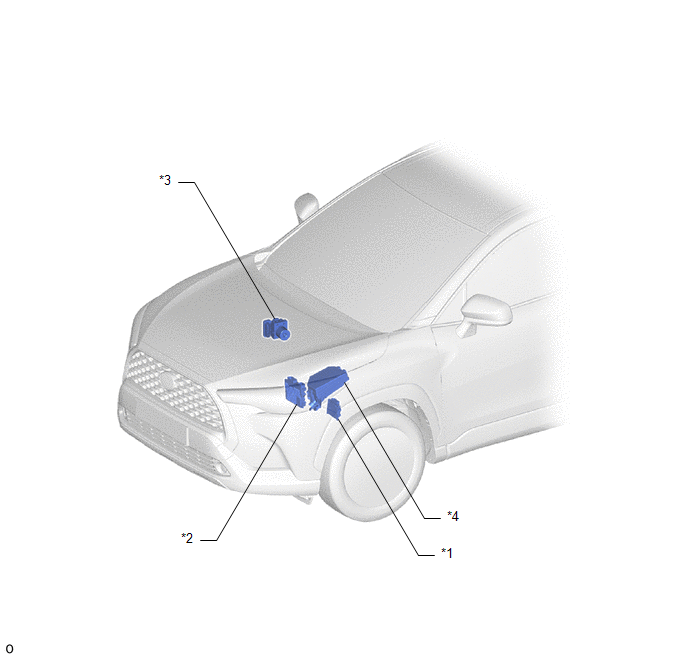

ILLUSTRATION

*1

TCM

*2

ECM

*3

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*4

NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY

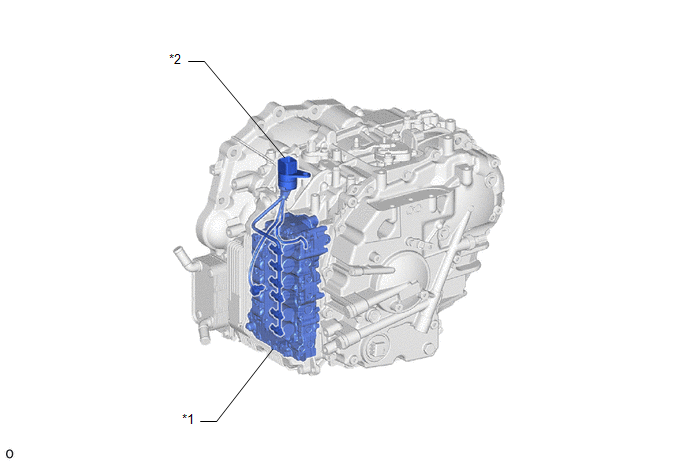

ILLUSTRATION

*1

TRANSMISSION VALVE BODY ASSEMBLY

- SHIFT SOLENOID VALVE SLG

- SHIFT SOLENOID VALVE SL1

- SHIFT SOLENOID VALVE SL2

- SHIFT SOLENOID VALVE SLU

- SHIFT SOLENOID VALVE SLP

- SHIFT SOLENOID VALVE SLS

*2

TRANSMISSION WIRE

- CVT FLUID TEMPERATURE SENSOR

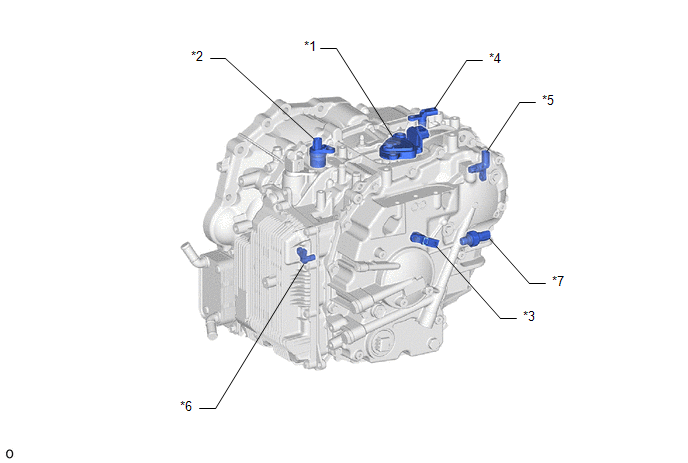

ILLUSTRATION

*1

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*2

SHIFT STROKE SENSOR

*3

TRANSMISSION REVOLUTION SENSOR (NT)

*4

TRANSMISSION REVOLUTION SENSOR (NOUT)

*5

TRANSMISSION REVOLUTION SENSOR (NSS)

*6

TRANSMISSION REVOLUTION SENSOR (NC1)

*7

OIL PRESSURE SENSOR

-

-

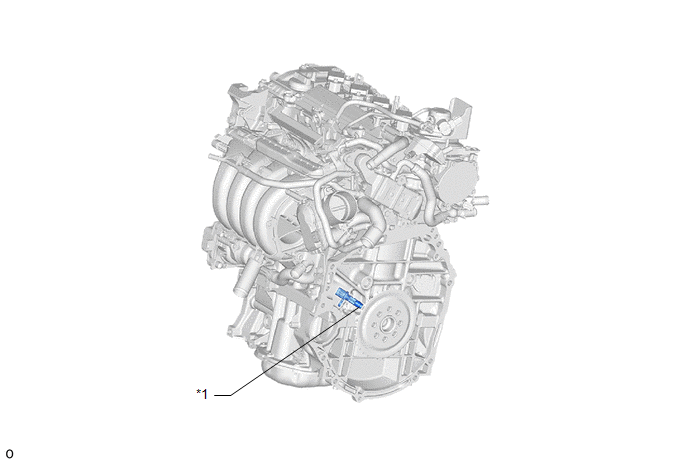

ILLUSTRATION

*1

CRANKSHAFT POSITION SENSOR

-

-

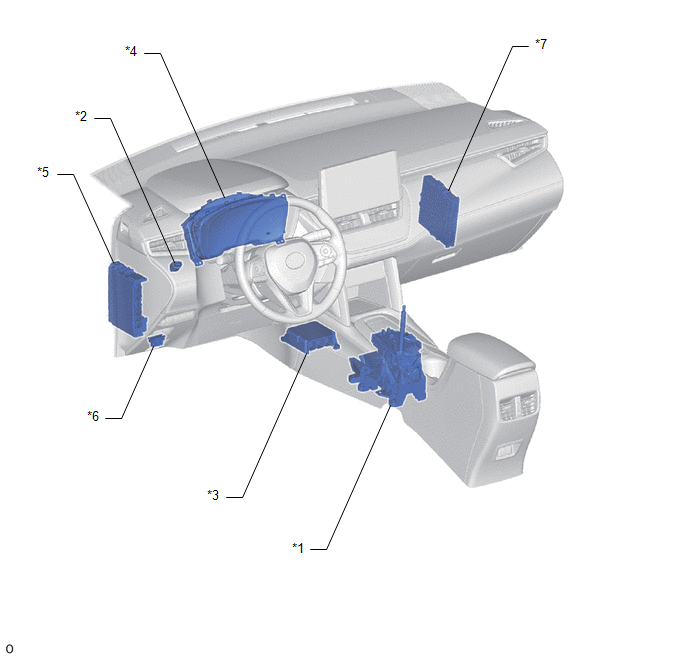

ILLUSTRATION

*1

SHIFT LOCK CONTROL UNIT ASSEMBLY

- TRANSMISSION CONTROL SWITCH

*2

STOP LIGHT SWITCH ASSEMBLY

*3

AIRBAG ECU ASSEMBLY

- YAW RATE AND ACCELERATION SENSOR

*4

COMBINATION METER ASSEMBLY

*5

POWER DISTRIBUTION BOX ASSEMBLY

*6

DLC3

*7

ENGINE STOP AND START ECU

-

-
