Toyota Corolla Cross: Operation Check

OPERATION CHECK

CHECK NAVIGATION SYSTEM NORMAL CONDITION (w/ Navigation Function)

(a) If the cause of a symptom is any of the following, the corresponding symptom is normal; it is not due to a malfunction.

Symptom

Answer

A longer route than expected is chosen.

Depending on the road conditions, the radio and display receiver assembly may determine that a longer route is quicker.

Even when distance priority is high, the shortest route is not shown.

Some routes may not be advised due to safety concerns.

When the vehicle is put into motion immediately after the hybrid system starts, the navigation system deviates from the correct position.*1

If the vehicle starts before the navigation system activates, the system may not react.

When the vehicle is put into motion immediately after the engine starts, the navigation system deviates from the correct position.*2

When driving on certain types of roads, especially new roads, the vehicle position deviates from the correct position.

When the vehicle is driving on new roads not available on the internal memory, the system attempts to match it to another nearby road, causing the position mark to deviate.

Route guidance uses roads with congestion

If the congestion is short, congested road avoidance will not be performed.

Some specific areas of the map are not displayed

Urban map areas without data will not be displayed.

  • *1: for HEV Model
  • *2: for Gasoline Model

(b) The following symptoms are not malfunctions, but may occur due to margin of error in the GNSS, gyro sensor, speed sensor or navigation system.

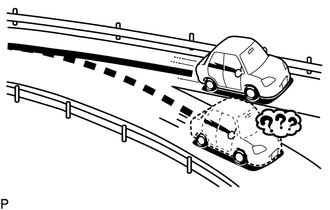

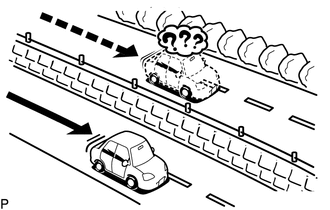

(1) The current position mark may be displayed on a nearby parallel road.

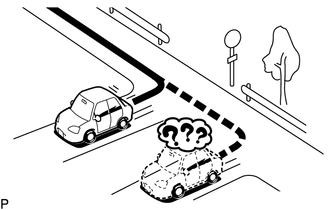

(2) Immediately after a fork in the road, the current vehicle position mark may be displayed on the wrong road.

(3) When the vehicle turns right or left at an intersection, the current vehicle position mark may be displayed on a nearby parallel road.

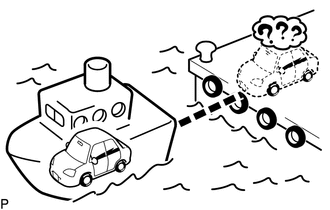

(4) When the vehicle is carried, such as on a ferry, and the vehicle itself is not driving, the current vehicle position mark may be displayed in the position where the vehicle was until a measurement can be performed by the GNSS.

(5) When the vehicle travels on a steep hill, the current vehicle position mark may deviate from the correct position.

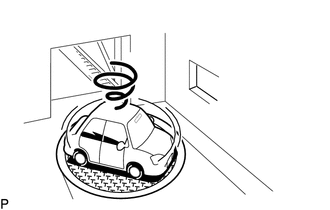

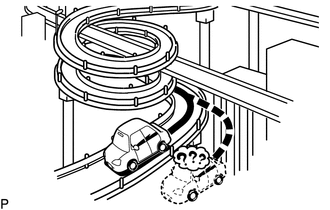

(6) When the vehicle makes a continuous turn (e.g. 360, 720, 1080 degrees), the current vehicle position mark may deviate from the correct position.

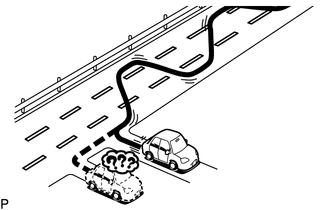

(7) When the vehicle moves erratically, such as constant lane changes, the current vehicle position mark may deviate from the correct position.

(8) When the ignition switch is turned to ACC or ON and the vehicle is turned on a turntable before parking, the current vehicle position mark may not indicate the correct direction. The same will occur when the vehicle comes out of the parking garage.

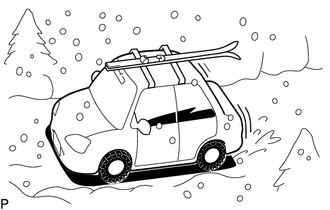

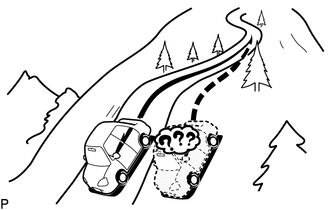

(9) When the vehicle travels on a snowy road or a mountain path with tire chains installed or using a spare tire, the current vehicle position mark may deviate from the correct position.

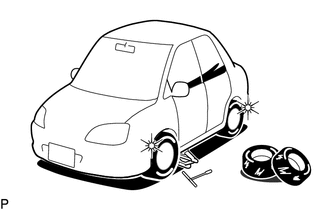

(10) When the tires are changed, the current vehicle position mark may deviate from the correct position.

HINT:

  • A change in tire diameter may cause a speed sensor error.
  • Performing "tire change" in calibration mode will allow the system to correct the current vehicle position faster.

CHECK SPEAKER

HINT:

  • For information on how to start diagnosis and transition to each screen, refer to
  • This function can check the wire harness between the stereo component amplifier assembly and each speaker for malfunctions. (for 9 Speakers)
  • This function can check the wire harness between the radio and display receiver assembly and each speaker for malfunctions. (for 6 Speakers)

(a) Turn radio and display receiver assembly on and play any audio source.

HINT:

  • This audio source will be used for the speaker check.
  • The "SPCheck ON" button is grayed out and cannot be pressed when the audio source is off.

(b) Enter diagnostic mode.

(1) Start diagnosis and display the "Service Menu" screen.

(2) Select "Failure Diagnosis" on the "Service Menu" screen to display the failure diagnosis screen.

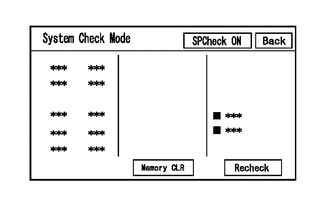

(3) Select "System Check" of the failure diagnosis screen to display the system check mode screen.

(c) Speaker check (for 6 Speakers)

(1) Select "SPCheck ON" from the "System Check Mode" screen.

(2) Check that each speaker outputs sound from the selected audio source properly.

HINT:

  • "SPCheck OFF" is displayed during the speaker check.
  • Sound can be heard from the speakers around the vehicle in order beginning from the speaker on the front side.
  • The sounding order during speaker check cannot be adjusted.
  • More than one speaker may sound simultaneously depending on the speaker wiring.
  • If sound is not output from a speaker, check the wire harness between the radio and display receiver assembly and each speaker for a malfunction.

(3) Sound stops when any of the following conditions are met:

  • "SPCheck OFF" is selected.
  • Audio mode is turned off.
  • The screen is changed to another screen.
  • Diagnostic mode is turned off.
  • The ignition switch is turned off.

(d) Speaker check (for 9 Speakers)

(1) Select "SPCheck ON" from the "System Check Mode" screen.

(2) Sound can be heard from the speakers around the vehicle in order beginning from the speaker on the front side.

HINT:

  • "SPCheck OFF" is displayed during the speaker check.
  • Sound can be heard from the speakers around the vehicle in order beginning from the speaker on the front side.
  • The sounding order during speaker check cannot be adjusted.
  • More than one speaker may sound simultaneously depending on the speaker wiring.
  • If sound is not output from a speaker, check the wire harness between the stereo component amplifier assembly and each speaker for a malfunction.

(3) Sound stops when any of the following conditions are met:

  • "SPCheck OFF" is selected.
  • Audio mode is turned off.
  • The screen is changed to another screen.
  • Diagnostic mode is turned off.
  • The ignition switch is turned off.

CHECK PANEL & STEERING SWITCH

HINT:

For enter diagnostic mode and screen transition, refer to

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "Panel&Steering Switch" on the "Function Check/Setting I" screen to display the "Panel&Steering Switch Check Mode" screen.

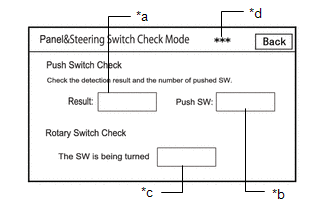

(b) Panel & Steering Switch Check Mode

(1) Operate each switch and check that the switch conditions are correctly displayed.

Screen Description

Display

Content

*a: Switch condition

"Pushed" is displayed when any switch is pushed.

*b: Number of switches pushed

  • Number of switches pushed at once is displayed.
  • If 3 switches are pushed at once, "3" is displayed.
  • If 4 or more switches are pushed at once, "More than 4" is displayed.

*c: Rotary switch direction

Direction of rotary switch is displayed.

*d: Communication method

The steering pad switch assembly method of communication is displayed.

HINT:

  • Do not push any switch for 3 seconds or more as doing so may cancel diagnostic mode.
  • If the result of a switch check for the radio and display receiver assembly is abnormal, it can be suspected that the radio and display receiver assembly is malfunctioning.
  • If the result of a switch check for the steering pad switch assembly is abnormal, it is necessary to perform an inspection of the steering pad switch assembly and spiral cable sub-assembly.

    Steering pad switch assembly: Click here

    Spiral cable sub-assembly: Click here

HINT:

For enter diagnostic mode and screen transition, refer to

CHECK TOUCH SWITCH

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "Touch Switch Check" on the "Function Check/Setting I" screen to display the "Touch Switch Check" screen.

(b) Touch Switch Check

*a

"+" mark

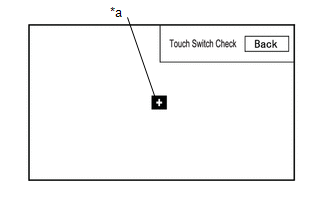

(1) Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

OK:
  • A "+" mark is displayed where the display is touched.

HINT:

  • The "+" mark remains on the display even after your finger is removed.
  • If the result of the touch switch check is abnormal, it can be suspected that the multi-display is malfunctioning.

HINT:

For enter diagnostic mode and screen transition, refer to

CHECK MICROPHONE

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "Microphone Check" on the "Function Check/Setting I" screen to display the microphone check screen.

(b) Microphone Check

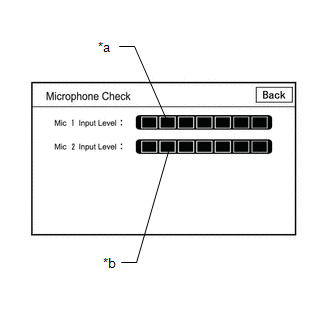

Screen Description

Display

Content

*a: Microphone 1 input level meter

Displays the input level in 8 steps for microphone 1

*b: Microphone 2 input level meter

Displays the input level in 8 steps for microphone 2

(1) Speak to the microphone and check that the microphone input level meter changes according to the input level.

HINT:

The microphone input level is updated every 0.1 seconds.

OK:

The microphone input level changes

CHECK GNSS (w/o Navigation Function)

For enter diagnostic mode and screen transition, refer to

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "GNSS Check" on the "Function Check/Setting I" screen to display the "GNSS Check" screen.

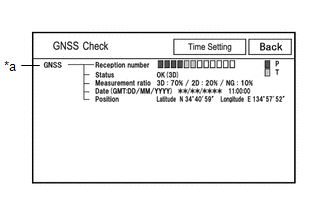

(b) GNSS Check

*a: GNSS

Display

Content

Reception number

Displays reception condition of the satellites used to determine vehicle position

Blue: P (In use)

System is using GNSS signal for location.

Yellow: T (Receiving)

System is tracking GNSS signal for location.

No color: Not in use

  • When "Data collected, unused measurement" notification is received via the GNSS receiver
  • When "searching" notification is received from the GNSS receiver

Status

Displays reception status of the satellites used to determine vehicle position

OK (3D)

3-dimensional location method is being used.

OK (2D)

2-dimensional location method is being used.

NG

Location data cannot be used.

error

Reception error has occurred.

-

Any other state.

Measurement ratio

Displays the ratio of satellites performing measurements

3D

The ratio of satellites performing 3D positioning is displayed.

2D

The ratio of satellites performing 2D positioning is displayed.

NG

The ratio of satellites not performing measurement is displayed.

Date

Date/time information obtained from GNSS signals is displayed in Greenwich Mean Time (GMT).

Position

Latitude and longitude information on current position is displayed.

HINT:

  • This screen is updated once per second.
  • When there is a malfunction in the GNSS signal, refer to Click here

HINT:

For enter diagnostic mode and screen transition, refer to

CHECK SYSTEM SENSORS (w/ Navigation Function)

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "System Sensors Check" on the "Function Check/Setting I" screen to display the "System Sensors Check" screen.

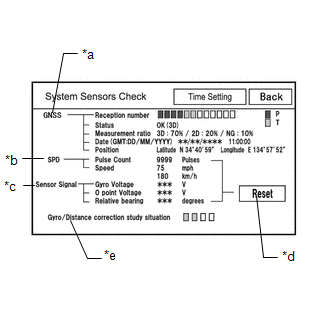

(b) System Sensors Check

*a: GNSS

Display

Content

Reception number

Displays reception condition of the satellites used to determine vehicle position

Blue: P (In use)

System is using GNSS signal for location.

Yellow: T (Receiving)

System is tracking GNSS signal for location.

No color: Not in use

  • When "Data collected, unused measurement" notification is received via the GNSS receiver
  • When "searching" notification is received from the GNSS receiver

Status

Displays reception status of the satellites used to determine vehicle position

OK (3D)

3-dimensional location method is being used.

OK (2D)

2-dimensional location method is being used.

NG

Location data cannot be used.

error

Reception error has occurred.

-

Any other state.

Measurement ratio

Displays the ratio of satellites performing measurements

3D

The ratio of satellites performing 3D positioning is displayed.

2D

The ratio of satellites performing 2D positioning is displayed.

NG

The ratio of satellites not performing measurement is displayed.

Date

Date/time information obtained from GNSS signals is displayed in Greenwich Mean Time (GMT).

Position

Latitude and longitude information on current position is displayed.

*b: SPD

Display

Content

Signal Input Terminal

Pulse Count

Displays the accumulated number of input pulses beginning when this screen is displayed

Terminal SPD of the radio and display receiver assembly

Speed

Displays vehicle speed

*c: Sensor Signal

Display

Content

Note

Gyro Voltage

Displays the output voltage of the gyro sensor

-

0 point Voltage

Displays the zero-point voltage of the gyro sensor

-

Relative bearing

Displays the output angle of the gyro sensor

The amount of change in bearing angle (degrees) after the system sensor check screen is displayed (clockwise: "+", counterclockwise: "-").

*d: Reset

Display

Content

Reset

When this switch is pressed and held for 3 seconds or more, the values for the display items of SPD signal and gyro sensor signal are reset and display "0".

*e: Gyro/Distance correction study situation

Display

Content

Gyro/Distance correction study situation

Displays learning status of Gyro/Distance correction

HINT:

  • This screen is updated once per second.
  • When the vehicle speed calculated from the GNSS signal differs from the SPD signal, DTC B228231 is stored.

    Click here

  • When the output voltage of the gyro sensor is abnormal, DTC B15AD96 is stored.

    Click here

HINT:

For enter diagnostic mode and screen transition, refer to

GNSS TIME SETTING

(a) Enter diagnostic mode. (w/o Navigation Function)

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "GNSS Check" from the "Function Check/Setting I" screen.

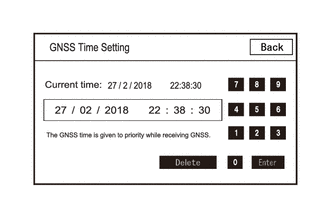

(4) Select "Time Setting" on the "GNSS Check" screen to display the GNSS Time Setting screen.

(b) Enter diagnostic mode. (w/ Navigation Function)

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "System Sensors Check" from the "Function Check/Setting I" screen.

(4) Select "Time Setting" on the "System Sensors Check" screen to display the GNSS Time Setting screen.

(c) GNSS Time Setting

HINT:

When GNSS radio waves can be received, GNSS time is prioritized.

HINT:

For enter diagnostic mode and screen transition, refer to

CHECK VEHICLE SIGNAL

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "Vehicle Signal" on the "Function Check/Setting I" screen to display the Vehicle Signal Check Mode screen.

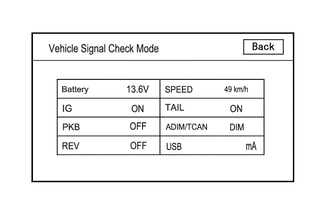

(b) Vehicle Signal Check Mode

(1) Check the vehicle signal status stored in the radio and display receiver assembly.

Screen Description

Display

Content

Signal Input Terminal

Battery

Auxiliary battery voltage is displayed.

Terminal +B1 of the radio and display receiver assembly

IG

Ignition switch ON/OFF state is displayed.

Terminal IG of the radio and display receiver assembly

PKB

Parking brake ON/OFF state is displayed.

Terminal PKB of the radio and display receiver assembly

REV

Reverse signal ON/OFF state is displayed.

Terminal REV of the radio and display receiver assembly

SPEED

Vehicle speed is displayed in km/h.

Terminal SPD of the radio and display receiver assembly

TAIL

Tail signal (light control switch) ON/OFF state is displayed.

Terminal ILL+ of the radio and display receiver assembly

ADIM/TCAN

Brightness state DIM (with) / BRIGHT (without) is displayed.

Input via CAN communication

USB

Displays the USB current (mA)

Terminal USV1 of the radio and display receiver assembly

HINT:

  • This screen is updated once per second.
  • If vehicle signals other than ADIM/TCAN is abnormal, inspect each terminal and wire harness.
  • If vehicle signal ADIM/TCAN is abnormal, it can be judged that the CAN communication system is malfunctioning.

    for HEV Model:

    Click here

    for Gasoline Model:

    Click here

HINT:

For enter diagnostic mode and screen transition, refer to

CHECK HANDS-FREE VOICE QUALITY AND VOLUME SETTING

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Function Check/Setting" from the "Service Menu" screen.

(3) Select "HF Voice Quality Setting" on the "Function Check/Setting I" screen to display the "Hands-Free Voice Quality Setting" screen.

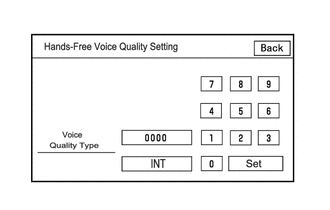

(b) Hands-Free Voice Quality Setting

Hands-Free Voice Quality Setting Screen Display Contents:

Item

Display contents

Operation Procedure

Voice Quality Type

Adjusts the audio on the vehicle side as heard by the other party

After setting the voice quality type using the numeric keypad, press the "Set" switch.

NOTICE:

The input voice quality type number is valid if it is listed in the settings parameter tables. As there may be adverse effects after setting the voice quality type, make sure to confirm that there is no problem in the voice quality after changing the setting.

(1) If necessary, refer to the table below to adjust the voice quality type with the numeric keypad.

Settings

Parameter

Target Phenomenon

Voice Quality Type

Positive Effect of Changing Voice Quality

Negative Effect of Changing Voice Quality

B

(Noise)

The other party hears a lot of background noise when listening to your voice.

2000

The amount of background noise the other party hears when listening to your voice is sharply reduced.

The volume of voice the other party hears when listening to your voice may temporarily drop.

D

(Echo)

The other party hears strong echoes.

0200

The amount of echo is reduced (high level).

Sound quality of the other party deteriorates (high level).

F

(Sound Quality)

Sound quality of driver's voice, which the other party hears, is poor.

0020

Sound quality of driver's voice is improved.

The amount of background noise covering over the driver's voice is increased.

Settings (When Multiple Phenomenon Occurred)

Parameter

Target Phenomenon

Voice Quality Type

Positive Effect of Changing Voice Quality

Negative Effect of Changing Voice Quality

B+D

The other party hears a lot of background noise and strong echoes when listening to your voice.

2200

  • The amount of background noise the other party hears when listening to your voice is sharply reduced.
  • The amount of echo is reduced (high level).
  • The volume of voice may drop temporarily.
  • Sound quality of the other party deteriorates (high level).

D+F

The other party hears strong echoes and sound quality of driver's voice is poor.

0220

  • The amount of echo is reduced.
  • Sound quality of driver's voice is improved.
  • The volume of voice the other party hears when listening to your voice may temporarily drop.
  • The amount of background noise covering over the driver's voice is increased.

HINT:

  • The default value is "0000".
  • Settings will be applied when the setting button is selected.
  • If voice quality type values that are not in the table are input, the setting will not be applied and a positive effect may not be gained.
  • If the quality of phone calls decreases due to the changed settings, return the settings to "0000" by selecting "INIT".

UPDATE VUI INFORMATION

HINT:

For enter diagnostic mode and screen transition, refer to

(a) Enter diagnostic mode.

(1) Enter diagnostic mode.

(2) Select "Service Information" from the "Service Menu" screen.

(3) Select "VUI information" on the "Service Information" screen to display the "VUI information" screen.

(b) VUI Information

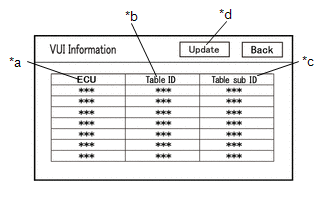

VUI Information Screen Display Contents

Display

Content

Remarks

*a: ECU

Displays the ECU name

  • Displays the respective ECU ID
  • Displays a maximum of 7 items

*b: Table ID

Displays the vehicle-specific number for the voice recognition commands.

  • Displays the VUI table ID
  • Displays a maximum of 7 items

*c: Table sub ID

Displays the latest version of voice recognition command IDs

  • Displays the VUI table sub ID
  • Displays a maximum of 7 items

*d: Update

Update the VUI information

-

ECU ID Display Content

ECU ID

ECU name

306

Main body ECU (multiplex network body ECU)

364

Combination meter assembly

  • *: Perform the following procedure only for the above ECUs that are installed to the vehicle

(1) If the table ID is "000", confirm that the CAN communication system is operating correctly and perform an inspection of the respective ECUs.

HEV Model:

Click here

Gasoline Model:

Click here

(2) If the table sub ID is "000", select "Update" on the VUI information screen and update VUI information.

HINT:

For enter diagnostic mode and screen transition, refer to

CHECK "Bluetooth" COMMUNICATION TRACE OUTPUT

(a) Connect the USB memory device to the stereo jack adapter assembly.

(b) Enter diagnostic mode.

(1) Start diagnosis and display the "Service Menu" screen.

*a

Green Indicator

(2) Select "Failure Diagnosis" on the "Service Menu" screen to display the "Failure Diagnosis" screen.

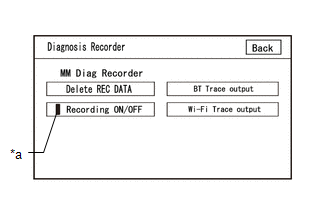

(3) Select "Diagnosis Recorder" on the "Failure Diagnosis" screen to display the "Diagnosis Recorder" screen.

(4) Select "Recording ON/OFF" on the "Diagnosis Recorder" screen to turn off the indicator (green).

(5) Press and hold (for 3 seconds) "BT cmc Trace output" on the "Diagnosis Recorder" screen.

HINT:

When the indicator (green) of "Recording ON/OFF" is illuminated, "BT cmc Trace output" is grayed out and cannot be selected.

(c) BT cmc Trace Output

(1) In accordance with the display, save the "Bluetooth" Connection History recorded data.

(2) Select "Recording ON/OFF" on the "Diagnosis Recorder" screen to turn on the indicator (green).

HINT:

  • When performing the above procedure, make sure to set the indicator (green) of "Recording ON/OFF" back to the illuminated state.
  • The Bluetooth Connection History is stored in the ECU internal memory, and consists of timestamped operation data. By checking "Bluetooth" Connection History, the date, cause, etc. of a "Bluetooth" device failing to register or connect can be analyzed.

    Click here

HINT:

For enter diagnostic mode and screen transition, refer to

CHECK "Wi-Fi" COMMUNICATION TRACE OUTPUT

(a) Connect the USB memory device to the stereo jack adapter assembly.

(b) Enter diagnostic mode.

(1) Enter diagnostic mode.

*a

Green Indicator

(2) Select "Failure Diagnosis" from the "Service Menu" screen.

(3) Select "Diagnosis Recorder" from the "Failure Diagnosis" screen.

(4) Select "Recording ON/OFF" on the "Diagnosis Recorder" screen and turn off the "Recording ON/OFF" green indicator.

(5) Select "Wi-Fi cmc Trace output" for 3 seconds.

HINT:

When the green "Recording ON/OFF" indicator is illuminated, the "Wi-Fi" cmc Trace output" is grayed out and cannot be selected.

(c) "Wi-Fi" cmc Trace Output

(1) According to the instructions on the screen, save the "Wi-Fi" Connection History data to a USB memory device.

(2) Select "Recording ON/OFF" on the Diagnosis Recorder screen to illuminate the green "Recording ON/OFF" indicator.

HINT:

  • Make sure that the green "Recording ON/OFF" indicator returns to illuminated state, after performing the above procedure.
  • This function is used to check the connection history when the connection between the radio and display receiver assembly and a "Wi-Fi" device is unstable.

    Click here

CHECK NAVIGATION VOICE GUIDANCE SETTING (VOICE GUIDANCE NOT SOUNDING)

(a) Check settings

(1) Set the volume to maximum in the volume setting in the settings screen and inspect the vocalization.

Standard:

Voice guidance can be heard.

HINT:

In the following situations, voice guidance is not performed even if the system is operating normally.
  • When a destination has not been set.
  • When the vehicle is not being driven on the specified route.
  • When voice guidance is muted.

CHECK GYRO INTIALIZATION (Vehicle position mark is rotating)

(a) Perform operation again

(1) Turn the ignition switch from off to on (IG), and check if the system returns to normal.

Standard:

The system returns to normal.

HINT:

  • If the ignition switch is turned to ACC or ON (IG) while the vehicle is being rotated (on a turntable, etc.), the system will display the vehicle position mark as rotating even when there is no malfunction as the radio and display receiver assembly will store the angular velocity as the reference value.
  • In the above situation, turn the ignition switch from off to ACC with the vehicle stopped to return the vehicle to normal.

    READ NEXT:

     Utility

    UTILITY SPEAKER CIRCUIT ENERGIZATION INSPECTION (for 9 Speakers) HINT: This function checks for an open in each speaker circuit. (a) Speaker circuit energization inspection (1) In accordance with

     Problem Symptoms Table

    PROBLEM SYMPTOMS TABLE HINT: Depending on the multi-display settings, the background will remain started even when the ignition switch is turned off. For that reason, check the multi-display set

     Terminals Of Ecu

    TERMINALS OF ECU RADIO AND DISPLAY RECEIVER ASSEMBLY Standard: Connector I55 Terminal No. (Symbol) Terminal Description Condition Specified Condition

    SEE MORE:

     Inspection

    INSPECTION PROCEDURE 1. INSPECT FUEL SENDER GAUGE ASSEMBLY CAUTION: Perform the inspection in a well-ventilated area. Do not perform the inspection near an open flame. (a) Check that the float moves smoothly between F and E. (b) Check the fuel sender gauge assembly voltage. (1) Apply 5 V b

     PBD Unit Pulse Sensor RH Circuit No Signal (B222731)

    DESCRIPTION This DTC is output when the multiplex network door ECU detects a power back door unit assembly set RH pulse malfunction. DTC No. Detection Item DTC Detection Condition Trouble Area B222731 PBD Unit Pulse Sensor RH Circuit No Signal Multiplex network door ECU de

    © 2020-2024 Copyright www.tcorollacross.com
