ON-VEHICLE INSPECTION

PROCEDURE

1. SECURE VEHICLE

(a) Fully apply the parking brake and chock a wheel.

CAUTION:

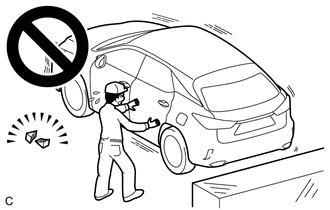

  • Make sure to apply the parking brake and chock a wheel before performing this procedure.
  • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

2. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Turn the ignition switch to ON.

(b) Depress the brake pedal and check that the engine can be started when the shift lever is in N or P, but cannot be started in any other position.

(c) Check that the back-up light illuminates only when the shift lever is in R, but does not function in any other position.

(d) If a malfunction or failure is found, check the park/neutral position switch assembly for continuity.
