Toyota Corolla Cross: Manual(sos)switch

Toyota Corolla Cross (2022-2026) Service Manual / Audio & Visual & Telematics / Cellular Communication / Manual(sos)switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

Procedure

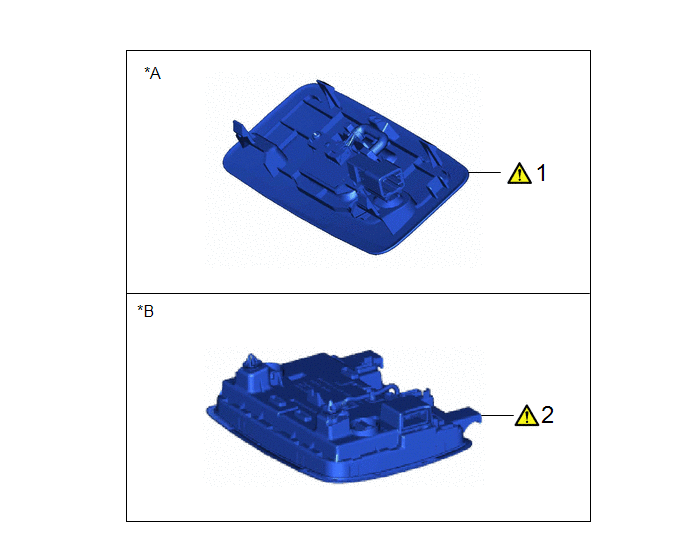

Part Name Code

1

MAYDAY SWITCH ASSEMBLY

-

-

-

2

MAP LIGHT ASSEMBLY

81260A

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

PROCEDURE

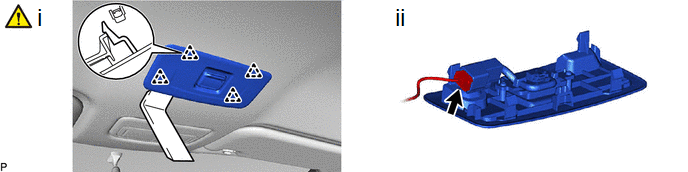

1. REMOVE MAYDAY SWITCH ASSEMBLY

(1) Using a moulding remover D, disengage the claws.

(2) Disconnect the connector to remove the mayday switch assembly.

2. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)

Click here

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Procedure

Part Name Code

1

MAYDAY SWITCH ASSEMBLY

-

-

-

-

2

MAP LIGHT ASSEMBLY

81260A

-

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

PROCEDURE

1. INSTALL MAYDAY SWITCH ASSEMBLY

2. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)

Click here
