Toyota Corolla Cross: Luggage Compartment Room Light

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Interior / Lighting (int) / Luggage Compartment Room Light

Removal

REMOVAL

CAUTION / NOTICE / HINT

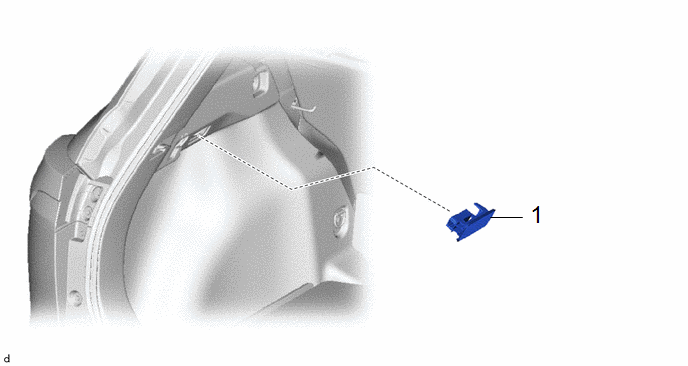

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

81330

-

-

PROCEDURE

1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

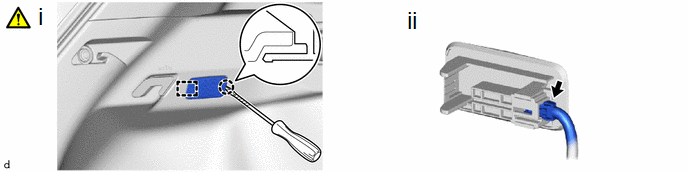

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and guide to remove the No. 1 luggage compartment light assembly.

(2) Disconnect the connector.

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

(a) Check the illumination.

(1) Apply auxiliary battery voltage to the No. 1 luggage compartment light assembly and check that the light illuminates.

OK:

Tester Connection

Specified Condition

O25-2 (B) - Auxiliary battery positive (+)

O25-1 (L) - Auxiliary battery negative (-)

Luggage compartment light illuminates

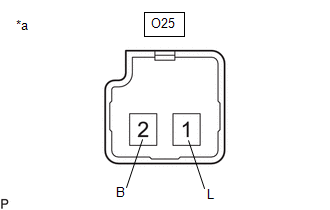

*a

Component without harness connected

(No. 1 Luggage Compartment Light Assembly)

(2) If the result is not as specified, No. 1 luggage compartment light assembly.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

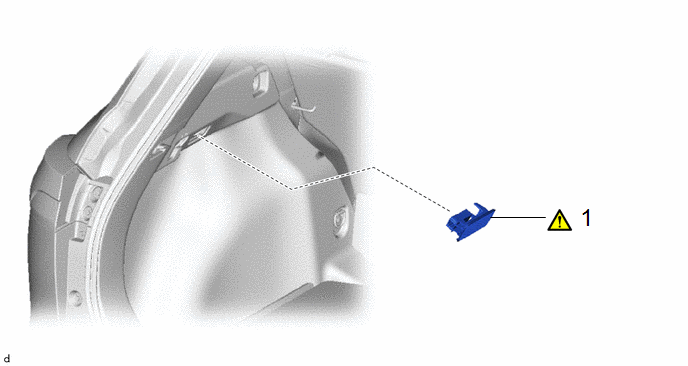

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

81330

-

-

-

PROCEDURE

1. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
