Toyota Corolla Cross: Left Front Wheel Speed Sensor Supply Voltage Circuit Short to Ground or Open (C14E014)

DESCRIPTION

Refer to DTC C050012

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C14E014

Left Front Wheel Speed Sensor Supply Voltage Circuit Short to Ground or Open

An open or short in the speed sensor power supply circuit is detected for 0.12 seconds or more.

  • Front speed sensor LH
  • Wire harness or connector
  • Skid control ECU (brake actuator assembly)

WIRING DIAGRAM

Refer to DTC C050012.

Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

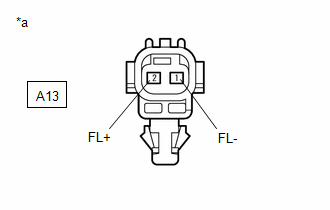

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(b) Disconnect the A13 front speed sensor LH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the ignition switch to ON.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A13-2 (FL+) - A13-1 (FL-)

Ignition switch ON

11 to 14 V

OK

REPLACE FRONT SPEED SENSOR LH

NG

2.

CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A151 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the A13 front speed sensor LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A13-2 (FL+) or A151-24 (FL+) - Body ground

Always

10 kΩ or higher

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
