Toyota Corolla Cross: Interior Light Auto Cut Circuit

DESCRIPTION

The main body ECU (multiplex network body ECU) controls operation of the DOME CUT relay in order to supply power to the interior lights. When the battery saving function operates while the interior lights are on, the main body ECU (multiplex network body ECU) opens the DOME CUT relay to turn off the lights.

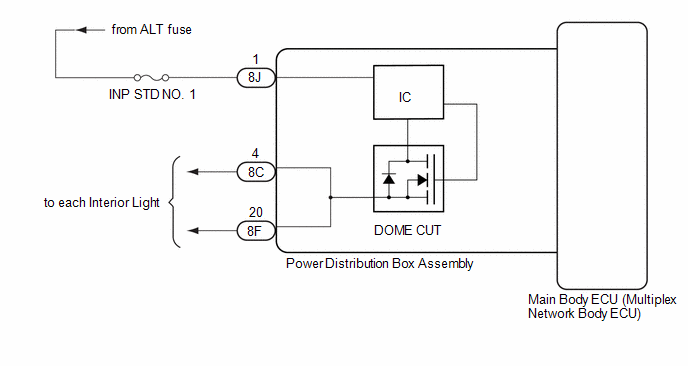

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Before replacing the main body ECU (multiplex network body ECU), refer to Registration.*1

    for HEV Model: Click here

    for Gasoline Model: Click here

    • *1: w/ Smart Key System

PROCEDURE

1.

PERFORM ACTIVE TEST USING GTS

(a) Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Relay for Interior Light Auto Cut Function

DOME CUT relay

OFF or ON

When performing this Active Test, turn all the interior lights on.

  • OFF: DOME CUT relay on (interior lights turn on)
  • ON: DOME CUT relay off (interior lights turn off)
Body Electrical > Main Body > Active Test

Tester Display

Relay for Interior Light Auto Cut Function

OK:

All of the interior lights turn off when ON is selected.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

2.

CHECK HARNESS AND CONNECTOR (POWER SOURCE - POWER DISTRIBUTION BOX ASSEMBLY)

(a) Disconnect the 8F power distribution box assembly connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

8F-20 - Body ground

Ignition switch off

11 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

REPLACE POWER DISTRIBUTION BOX ASSEMBLY

(a) Replace the fold power distribution box assembly with a new or known good one.

Click here

NEXT

4.

PERFORM ACTIVE TEST USING GTS

(a) Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Relay for Interior Light Auto Cut Function

DOME CUT relay

OFF or ON

When performing this Active Test, turn all the interior lights on.

  • OFF: DOME CUT relay on (interior lights turn on)
  • ON: DOME CUT relay off (interior lights turn off)
Body Electrical > Main Body > Active Test

Tester Display

Relay for Interior Light Auto Cut Function

OK:

All of the interior lights turn off when ON is selected.

OK

END (POWER DISTRIBUTION BOX ASSEMBLY WAS DEFECTIVE)

NG

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
