Toyota Corolla Cross: Intake System

Toyota Corolla Cross (2022-2026) Service Manual / Engine & Hybrid System / M20a-fxs (intake / Exhaust) / Intake System

On-vehicle Inspection

ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced when repairing air leaks in the intake system are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Air leak from intake system is repaired

Inspection After Repair
  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

1. INSPECT INTAKE SYSTEM

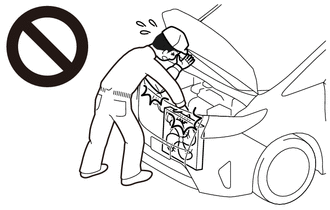

CAUTION:

To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the power switch on (IG).

HINT:

Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

Click here

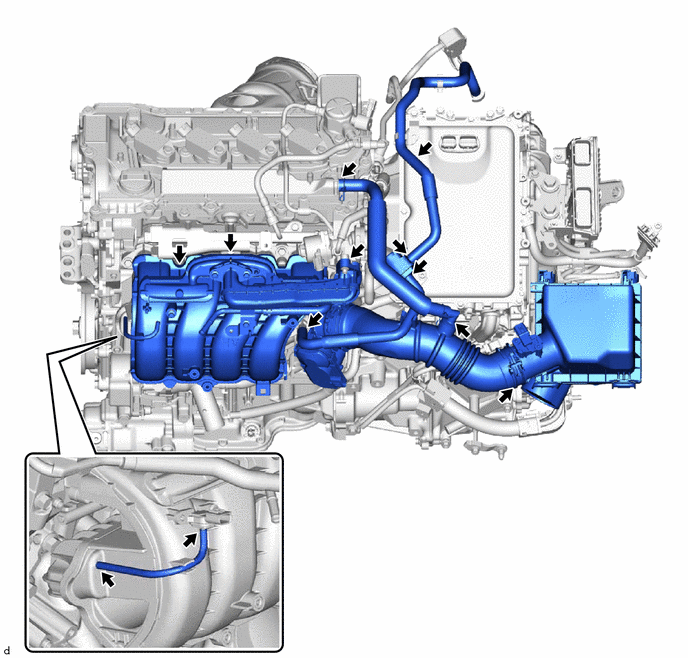

(a) Check that there are no vacuum leaks at the points shown in the illustration.

2. PERFORM INITIALIZATION

(a) Perform Inspection After Repair after repairing vacuum leaks in the intake system.

Click here
