Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

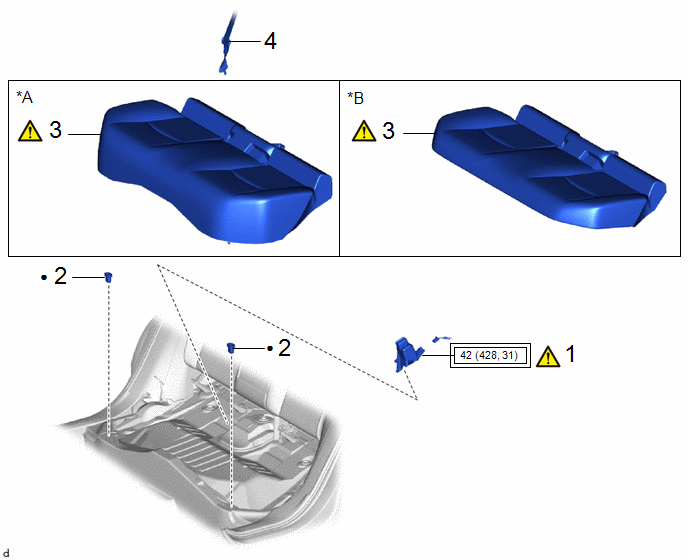

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR SEAT INNER BELT ASSEMBLY

73580B

-

-

2

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

3

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

4

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

PROCEDURE

1. INSTALL REAR SEAT INNER BELT ASSEMBLY

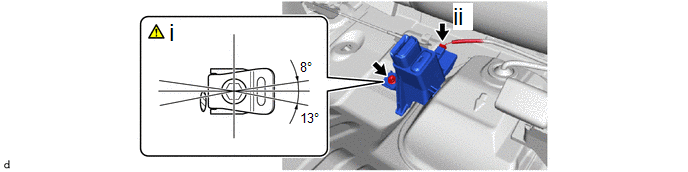

Protruding Part

-

-

(1) Install the rear seat inner assembly with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding parts of the vehicle body.

(2) Connect the connector.

2. INSTALL REAR SEAT CUSHION LOCK HOOK

3. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

  • for Gasoline Model:

    Click here

  • for HEV Model:

    Click here

4. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
