Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Meter / Gauge / Display / Light Control Rheostat / Installation

INSTALLATION

CAUTION / NOTICE / HINT

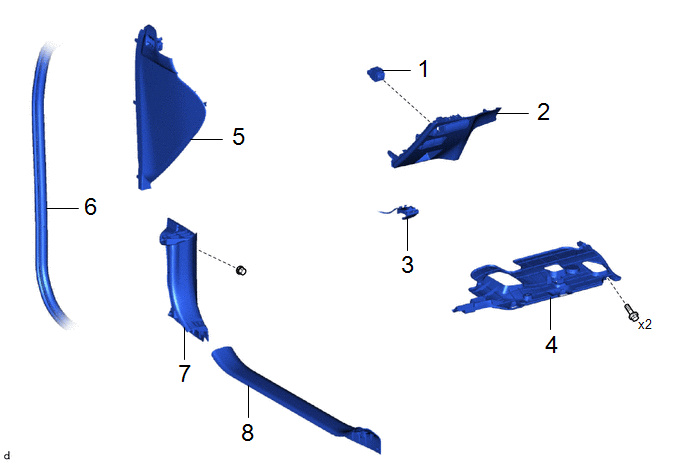

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

LIGHT CONTROL RHEOSTAT

84119

-

-

-

2

LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

55432D

-

-

-

3

HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

53601

-

-

-

4

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55606

-

-

-

5

NO. 1 INSTRUMENT SIDE PANEL

55317E

-

-

-

6

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

62312B

-

-

-

7

COWL SIDE TRIM SUB-ASSEMBLY LH

62112A

-

-

-

8

FRONT DOOR SCUFF PLATE LH

67914B

-

-

-

PROCEDURE

1. INSTALL LIGHT CONTROL RHEOSTAT

2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

3. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

5. INSTALL NO. 1 INSTRUMENT SIDE PANEL

6. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

7. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

8. INSTALL FRONT DOOR SCUFF PLATE LH
