Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Lighting (int) / Back Door Courtesy Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

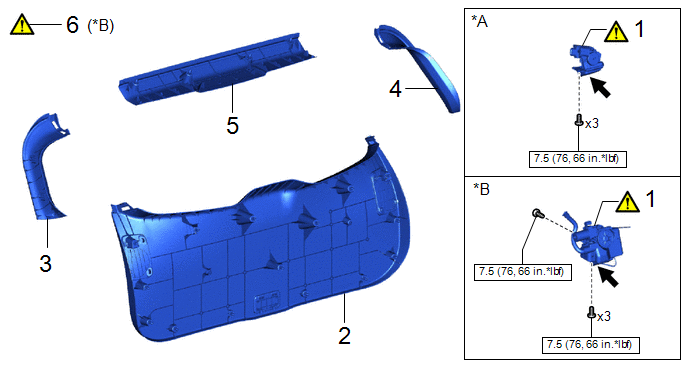

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

69350P

-

-

2

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

3

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

4

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

5

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

6

INSPECT POWER BACK DOOR SYSTEM

-

-

-

*A

w/o Power Back Door

*B

w/ Power Back Door

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

PROCEDURE

1. INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

Click here

2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH LH

4. INSTALL BACK DOOR SIDE GARNISH RH

5. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY

6. INSPECT POWER BACK DOOR SYSTEM (w/ Power Back Door)

Click here
